Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE, ISO |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 60days |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 10 sets/month |
Warranty: | 1 Year | Wire Diameter: | 3-6mm |
---|---|---|---|
Welding Speed: | 40-60times/min | Color: | Gracy And Yellow |
Rated Capacity: | 150KVA*9 | Mesh Width: | Max 3000mm |
Rated Voltage: | 380V/415V,50Hz | Name: | Fence Machine Panel Machine |
Control System: | PLC Touch Screen | Cross Wire Space: | 50-200mm |
Long Wire Spcaing:: | ≥50mm | ||
High Light: | 3D Fence Welded Wire Mesh Machine,150KVA Welded Wire Mesh Machine,150KVA Automatic Wire Mesh Machine |

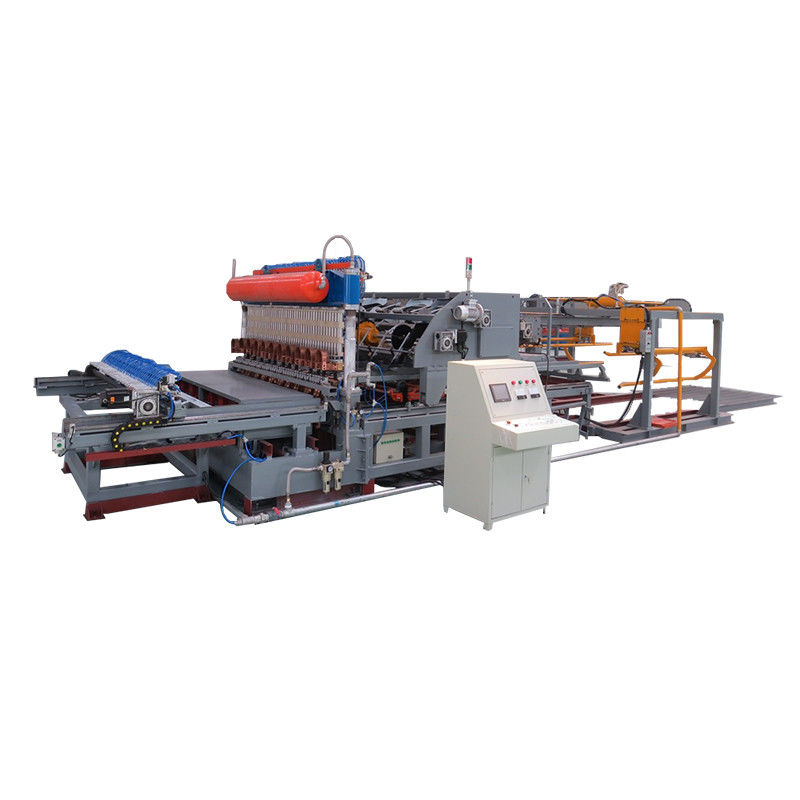

Full-Auto Online Bending 3D Fence Welded Wire Mesh Machine
1) The equipment adopts PLC programming control, and with humanized operation interface, which makes it easy to operate and master.
2) The adjustment of mesh specifications adopts LCD touch screen, which makes it very easy to set all the production datum.
3) Both the operating system and numerical control servo system adopt international known brands. ( they have the international safety certification through testing and inspecting technically) They can ensure that equipment can be steady, secure and sensible to meet the welding requirement at a high speed.
4) Servo motor is controlled by pulse, which makes the grid error reduce to 0.1mm
5) The guide adopts linear rails, used with servo control together, which greatly improves accuracy of mesh.
The overhangs of meshes cut by this device are very short, which can save material cost for you.The length of the steel mesh can be arbitrarily settled by editing the production parameters to meet different needs.The cutting range of mesh width Is 2500mm. It can be adjusted according to user needs.The cutting speed of mesh is controlled by the PLCIt adopts pneumatic cutting with big pressure, which can easily cut 16 pcs wires with diameter 3-6mm.
|
we will according your mesh drawings to plan for you the different type for your products,
long wire full-auto blanking in by pre-cut in wire and cross wire are pre-cut in too, we can also make that online bending at once time,
