| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-20J |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C,T/T, Western Union |
| Supply Ability: | 10 sets/month |
| Wire Diameter:: | 2-4mm | Max Width:: | 2000mm |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Wire Diameter: | 1.5-4mm |
| Certification: | CE,ISO9001 | Weight: | 7t |
| Warranty: | 1 Year | Color: | Gray And Yellow |
| Control System:: | PLC | Rated Voltage:: | 415V/380V,50Hz/60Hz |
| Type: | Fully Automatic | Long Wire Space: | Min.20mm |
| Highlight: | PLC Control Wire Mesh Welding Machine,7t Wire Mesh Welding Machine,PLC Control Chicken Cage Welding Machine |
||

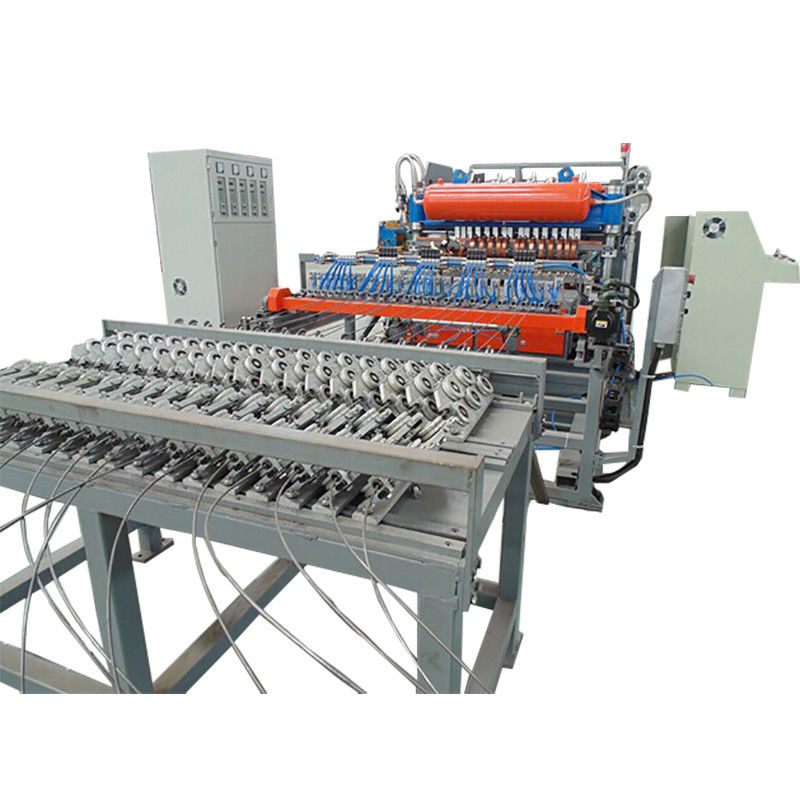

Hot Sale Pet And Chicken Cage Wire Mesh Welding Machine
The whole equipment adopts PLC programming control, user-friendly operation interface, easy to operate and master, mesh size adjustment can be edited through LCD touch screen, all production data setting is convenient and fast. Operating system, CNC servo system, stable performance, meet the needs of high-speed welding mesh.
The operation platform has two selection modes: manual and automatic.
The parameters of the servo net drawing system can be set and stored in PLC without losing when power is off.
Automatic cross wire feeding mechanism (mechanical shearing)
Under the program control, the servo motor drives the wire feeding wheel to feed the wire rod into the straightening drum, The steel wire is straightened and cut automatically by the rapid rotation of the straightening roller. The steel wire is sent between the electrodes through the spring wire device, and the main beam is welded. After the welding of a row of horizontal wires is completed, the vertical wires step into a grid, and at the same time, a horizontal wire is dropped for welding, which is repeated several times in turn, and a finished mesh is completed;
The feeding of steel wire is smooth, fast and accurate.
|
Product type |
DNW-20Q |
|
Working speed max. |
60-90Times/Min. |
|
Width range of wire mesh |
≤ 2000mm |
|
Longitudinal wire spacing |
≧20mm variable from mm it can be adjusted |
|
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
Control method |
PLC programming control, servo stepper system |
|
Welding cylinders number |
51pcs |
