| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-33Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 60days |
| Payment Terms: | L/C,T/T, Western Union |
| Wire Diameter:: | 3-6mm | Max Width:: | ≥3300mm |
|---|---|---|---|
| Name:: | Mesh Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
| Wire Diameter: | 3-6mm | Certification: | CE,ISO9001 |
| Weight: | 7t | Warranty: | 1 Year |
| Color: | Gray And Yellow | Control System:: | PLC+SERVO |
| Rated Voltage:: | 415V/380V,50Hz/60Hz | Rated Capacity:: | 160Kva*9set |
| Long Wire: | Pre-cut In | Cross Wire: | Pre-cut In |
| High Light: | Safe Net Multi Point Spot Welding Machine,160Kvax9 Multi Point Spot Welding Machine,160Kvax9 Spot Welding Machine |
||

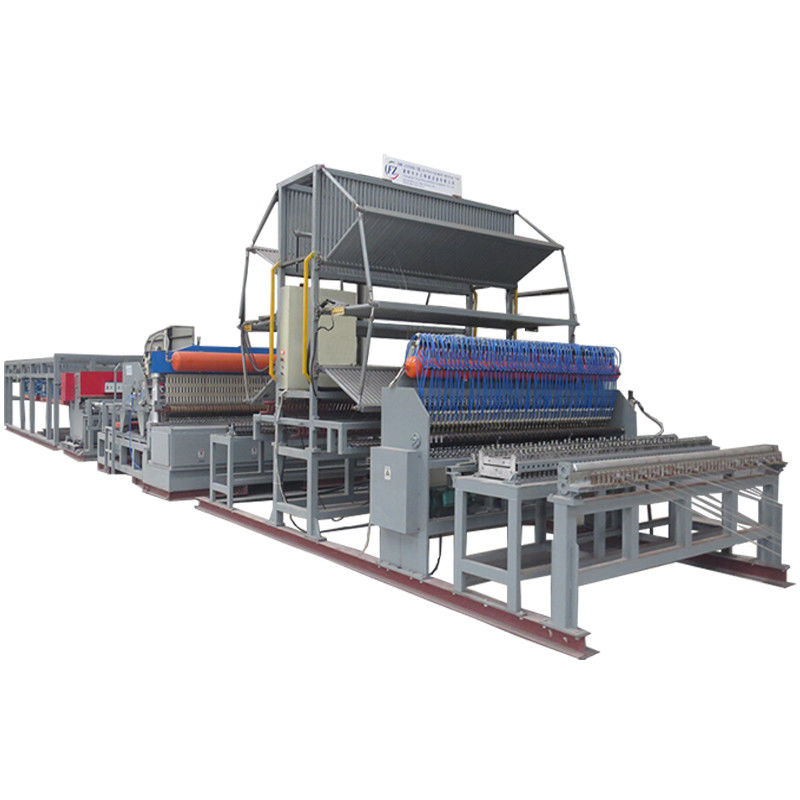

Safe Net Cross Wire Free Adjusta Multi Point Spot Welding Machine
Mesh traction adopts brand CNC servo system control.Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh. Using the gear and the rack drive, the transmission efficiency is perfect.Traction device can work in way of back and forth, return rapid and stable.Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers. The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
long wire and cross wire all pre-cut in ,then the mesh panel will be more flatness.
|
Product type |
DNW-20Q |
|
Working speed max. |
35-55Times/Min. |
|
Width range of wire mesh |
≤ 3300mm |
|
Longitudinal wire spacing |
≧25mm variable from mm it can be adjusted |
|
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
Control method |
PLC programming control, servo stepper system |
|
Welding cylinders number |
51pcs |
the safe net mesh cross wire are smaller than the model type,Soldering firm can reach European and American standards,
