| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatic Pneumatic Cage Mesh Multi Point Spot Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Key Selling Points: | 2-4mm | Color: | Can Be Customized |
| Usage: | Cage Mesh | Lead Time: | 20 Days |
| Welding Method: | Pneumatic | Automation Degree: | Full Automatic |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Highlight: | Wire Mesh Pneumatic Spot Welder,220V Pneumatic Spot Welder,220V Wire Mesh Spot Welding Machine |
||

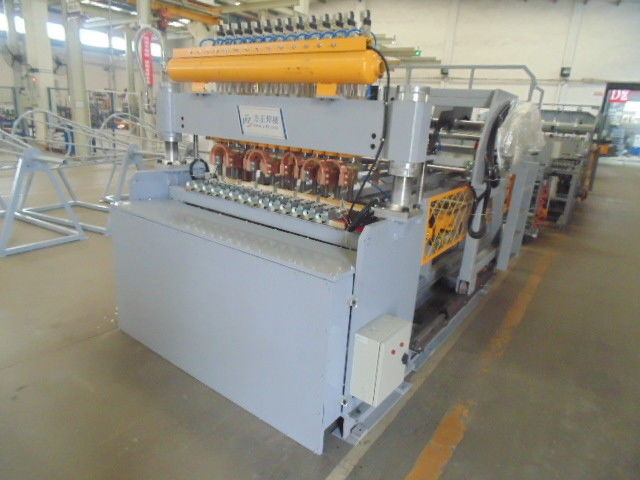

Automatic Pneumatic Cage Mesh Multi Point Spot Welding Machine
The pneumatic clamp unit in the cantilever code network clamp the mesh at the same time, transports to the rear through the motor driving line, and slowly drops to the station. When the mesh is stacked for a certain number, the tray forklift truck is shipped out, and the overall code network is neat, without pushing again.
With duplex, can be put directly, or can connect the assembly line, placed on the transport belt.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 | Pneumatic component | STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 | Welding electrode | Chromium zirconium bronze | |
| 7 | Switch and button | SCHNEIDER | |
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU |
Welding host- -wire welding spacing to achieve stepless adjustment, enhance the design of the welding transformer structure, configure a special forced water cooling system, to ensure that the long-time operation without heating, good welding effect.
The equipment adopts high-speed strength cylinder lower pressure welding, the welding pressure is uniform and makes the welding point stronger. The welding electrode head is made of high quality pick chrome copper material and water circulating cooling, the overall more wear resistance, better conductivity, longer service life and reduce production cost.
Welded gas storage device is equipped with air filter device and oil pollution filter device, which can greatly improve the service life of the pneumatic elements of the equipment.
Each cylinder is welded to one weld point, while the lower pressure group discharge welding. All electric stage heads are square and available on all sides. The upper and lower main girder is composed of thick steel plate splicing, firmly and without deformation.
