| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-33Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 60days |
| Payment Terms: | L/C,T/T, Western Union |
| Wire Diameter:: | 3-6mm | Max Width:: | 30000mm |
|---|---|---|---|
| Name:: | Construction Mesh Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
| Wire Diameter: | 6-12mm | Certification: | CE,ISO9001 |
| Weight: | 7t | Warranty: | 1 Year |
| Color: | Gray And Yellow | Control System:: | PLC |
| Rated Voltage:: | 415V/380V,50Hz/60Hz | Rated Capacity:: | 150Kva*6set |
| Long Wire Spacing: | 50mm Adjustable | Cross Wire Spacing: | 50mm Adjustable |
| Highlight: | 30000mm Wire Mesh Welding Machine,Construction Wire Mesh Welding Machine |
||

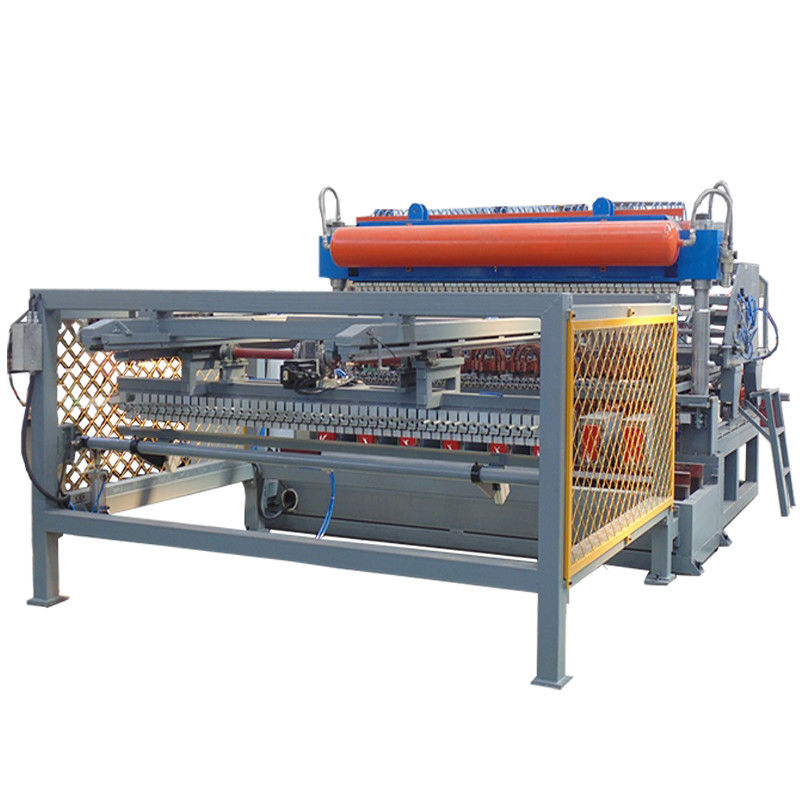

Hot Sale Construction Building Wire Mesh Welding Machine
We will insist on improving our products in appearance, quality, performance, after-sale. We strive to provide customers with quality products and after-sales service, and committed to provide users with a cost-effective mesh welding equipment.
1) Mesh traction adopts brand CNC servo system control.
2) Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
3) Using the gear and the rack drive, the transmission efficiency is perfect.
4) Traction device can work in way of back and forth, return rapid and stable.
5) Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
6) The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
|
Product type |
DNW-20Q |
|
Working speed max. |
35-55Times/Min. |
|
Width range of wire mesh |
≤ 2000mm |
|
Longitudinal wire spacing |
≧50mm variable from mm it can be adjusted |
|
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
Control method |
PLC programming control, servo stepper system |
|
Welding cylinders number |
51pcs |
