| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | GT8-12 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | discuss |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 15days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 30 sets /month |
| Place Of Origin:: | Hebei, China | Video：: | Provided |
|---|---|---|---|
| Cutting Length:: | 500-1000mm（adjustable） | Wire Diameter Range: | 5.0-12.0mm |
| Straightening Speed:: | 70-120m/minute | Core Components:: | PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Touch Screen, |
| Weight (KG):: | 18000 | Warranty Of Core Components:: | 1 Year |
| Products Name:: | CNC Straightening And Cutting Steel Wire Machine | Straighteness:: | ±2mm/m |
| Use: | Wire | ||
| Highlight: | 120m/min Rebar Straightening And Cutting Machine,4620x500x2230mm Rebar Straightening And Cutting Machine,CNC Steel Bar Straightening Machine |
||

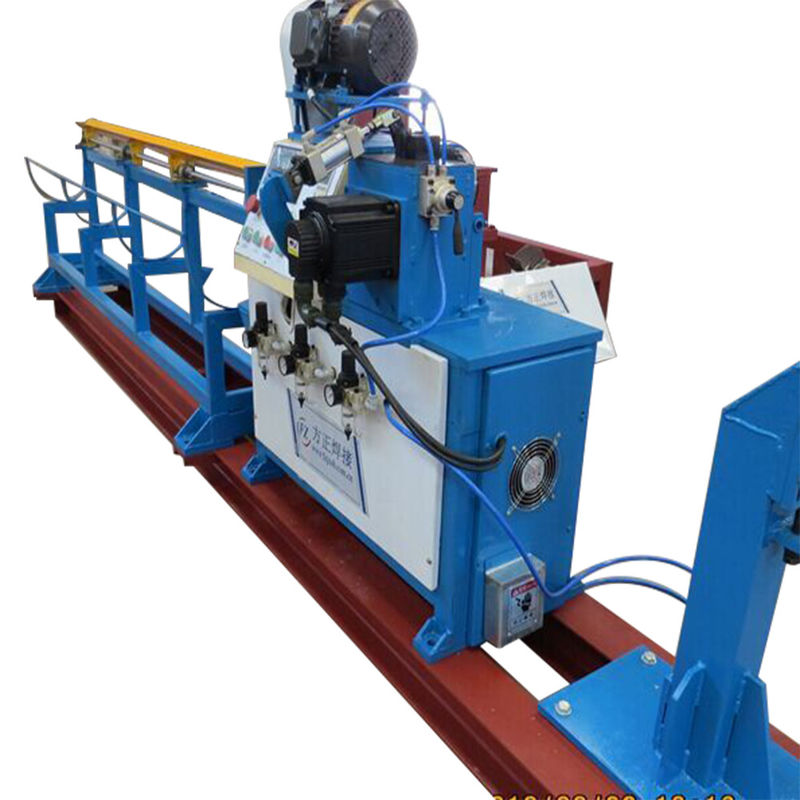

CNC For Steel 5-12mm Wire Straightening And Cutting Machine
Technical parameters of GT 10 / 16 steel bar straightening and cutting machine:
Steel bar with diameter of Φ 10 ~ Φ 16 (strength σ s ≤ 400MPa)
The length of straightening and cutting is 800mm ～ 12000mm
Straightening speed high speed gear 130m / min
Medium speed 100 m / min
Low gear 75m / min
Fixed length error ≤± 1mm
Straightness of steel bar after straightening ≤± 2mm / M
Motor power cut-off motor 7.5kW servo motor
Main motor 45 kw
Inverter heavy load vector 45 kw
| NO. | NAME | PARAMETER |
| 1 | Wire diameter | 5.0-12.0mm |
| 2 | Length | 500-2000mm(adjustable) |
| 3 | Length error | ＜±1mm |
| 4 | Speed | 70-120m/min |
| 5 | Straightenss | ＜2mm/m |
| 6 | Material | Q235,Q195,Galvanized wire |
| 7 | Cutting knife material | Alloy |
| 8 | Feed motor power | 4.5KW |
| 9 | Motor power of shuttle | 3KW |
| 10 | Power supply voltage | 380V 3Phas 50Hz |
| 11 | Air pressure | 0.6-0.8mpa |
| 12 | Equipment size | 4620*500*2230 |
| 13 | Color | Gray,Yellow |
