| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-16J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Professional 2-4mm Chicken Cage Gi Wire Net Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-4mm |
| Mesh Hight: | 1600mm | Mesh Hole Size: | 25*25mm |
| Welding Speed: | 70-90times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | High Speed | Color: | Can Be Customized |
| Highlight: | 90times/Min Chicken Mesh Making Machine,4mm Chicken Mesh Making Machine,4mm Hexagonal Wire Mesh Machine |
||

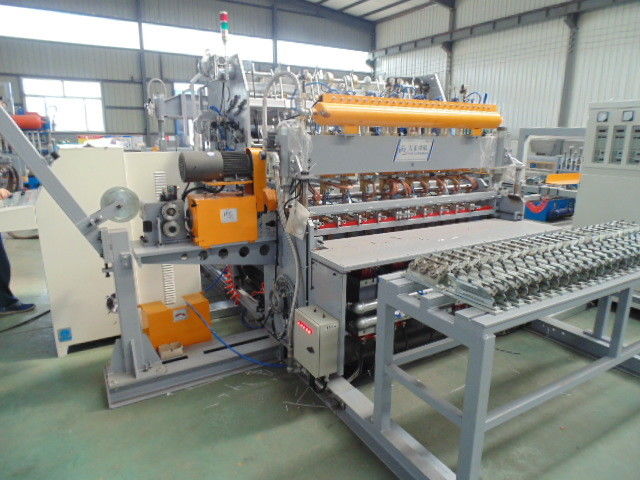

Professional 2-4mm Chicken Cage Gi Wire Net Making Machine
We have rich experience of making Professional 2-4mm Chicken Cage Gi Wire Net Making Machine and a specialized team with top techniques for the welded mesh machine. We can tailor-made various series of Gi Wire Net Making Machine depends on different fields. At present, we have become a specialized manufacturer merging developing, designing, making and selling of Gi Wire Net Making Machine, especially welding machines into a whole. The host of the machine can enjoy one-year free maintenance and lifetime service and 24-hour hotline service.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
Comprising of several groups of wire straightening units, each group has two pairs of straightening wheels inclined in the opposite direction. The unique straightening machine is suitable for straightening steel wire with different diameters, each unit is 5 straightening wheels, each straightening wheel is made of alloy steel and heat treatment and corrosion prevention treatment, overall wear and corrosion resistance, adapted to straightening low-carbon cold wire pulling, galvanized wire, etc.;
Different diameter wires can be well straightened, only need to adjust the spacing between the upper and lower two sets of straightening wheels.
Contact Person: Bella
Tel: +8613283273008
