| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatic Steel Rebar Weld Fence Panel Reinforcing Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | 2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60 Times/min | Voltage: | 220V/380V/415V/440V |
| Color: | Grey& Yellow | Mesh Length: | 3000mm |
| Highlight: | Steel Rebar Reinforcing Mesh Welding Machine,50x50mm Reinforcing Mesh Welding Machine |
||

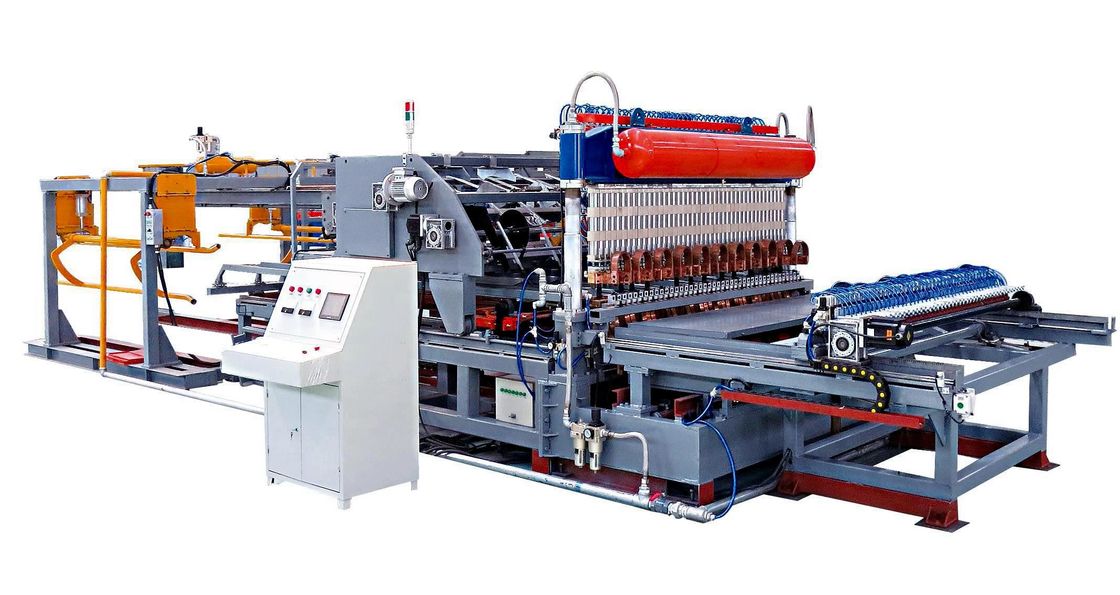

Automatic Steel Rebar Weld Fence Panel Reinforcing Mesh Welding Machine
Pull net trolley mechanism
The mesh traction is controlled by the brand CNC servo system.
The traction device is equipped with a pneumatic clamp unit, the traction mesh can tightly clip the latitude line, effectively improve the grid accuracy.
Adopt gear and rack drive mode, with high transmission efficiency.
Use the linear guide rail and slider guide, combined with the servo motor, to ensure the accuracy of the mesh.
The traction device can be reciprocated, and the return journey is fast and stable.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢12+12mm | |
| 2 | Long wire diameter | ¢5-12mm | |
| 3 | Cross wire diameter | ¢5-12mm | |
| 4 | Long wire feeding method | In pre-cut | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥100mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥100mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤12000mm | Adjustable |
| 9 | Width range of wire mesh | ≤3000mm | Adjustable |
| 10 | Number of welding spot | 29PCS | |
| 11 | Working speed max. | 40-60times/min |
This device is the core part of Construction Used High Speed Reinforcing Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Construction Used High Speed Reinforcing Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Construction Used High Speed Reinforcing Mesh Welding Machine meets the demand to weld continuously wires of 12+12mm at a high speed at the moment when saving energy.
Construction Used High Speed Reinforcing Mesh Welding Machine 29 electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
