| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Item: | Fully Automatic Steel Wire Fence Roll Mesh Welding Machine | Lead Time: | 40 Days |
|---|---|---|---|
| Welding Method: | Pneumatic | Automation Degree: | Automatic |
| Certification: | CE ISO | Producton Capacity: | 25 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Highlight: | Fully Automatic Roll Mesh Welding Machine,25 Sets/Month Roll Mesh Welding Machine |
||

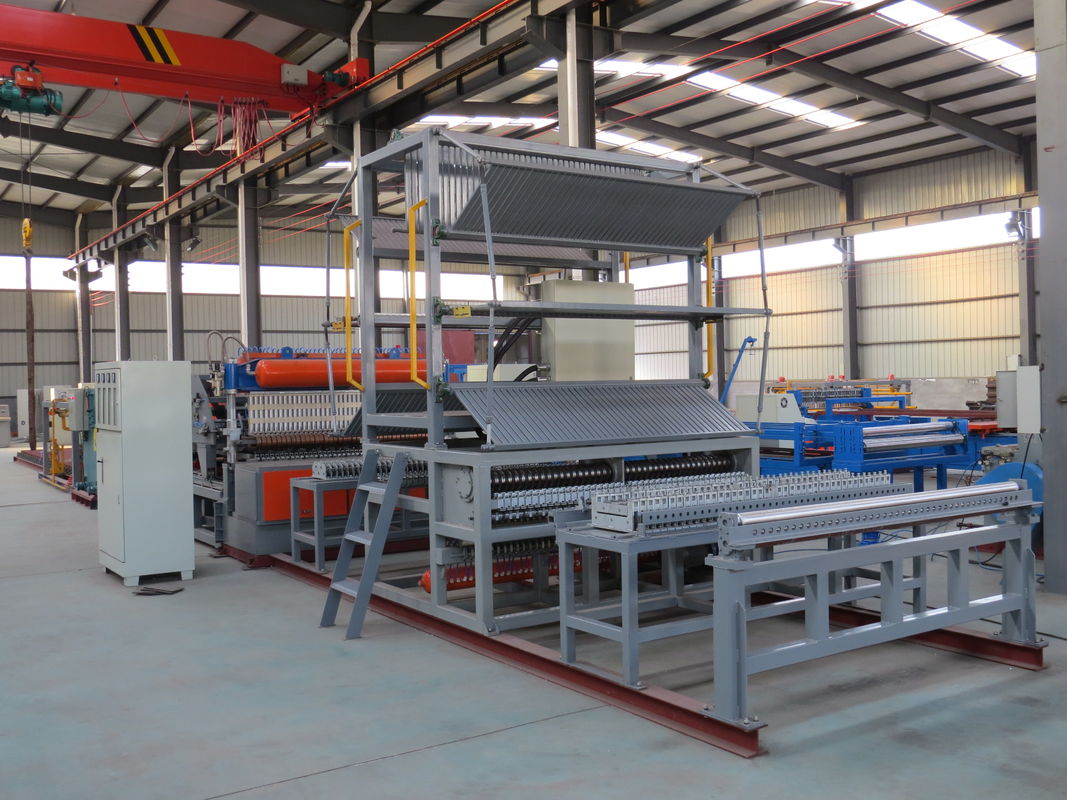

Fully Automatic Steel Wire Fence Roll Mesh Welding Machine
This type of machine is an automatic welding equipment developed by our company on the basis of absorbing advanced electromechanical control resistance welding technology at home and abroad. This machine developed by our company has the following characteristics:
The main frame is welded by thick steel plate and profile, which makes the main structure more firm and compact.
The structure of weft wire blanking mechanism is novel, and pneumatic drive is used to automatically blanking, which makes the weft wire placement more accurate. The structure of the mechanism is compact and the layout is reasonable.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
Welding forming mesh, the motor of Construction Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Construction Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Construction Full Automatically Roll Mesh Welding Machine.
