| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Item: | Good Quality And Competitive Price Wire Roll Mesh Welding Machine | Lead Time: | 15 Days |
|---|---|---|---|
| Welding Method: | Mechanical | Automation Degree: | Fully Automatic |
| Certification: | CE ISO | Producton Capacity: | 30 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Highlight: | Automatic ISO Rolling Cold Welding Machine,ISO Rolling Cold Welding Machine,ISO Welding Machine For Steel |
||

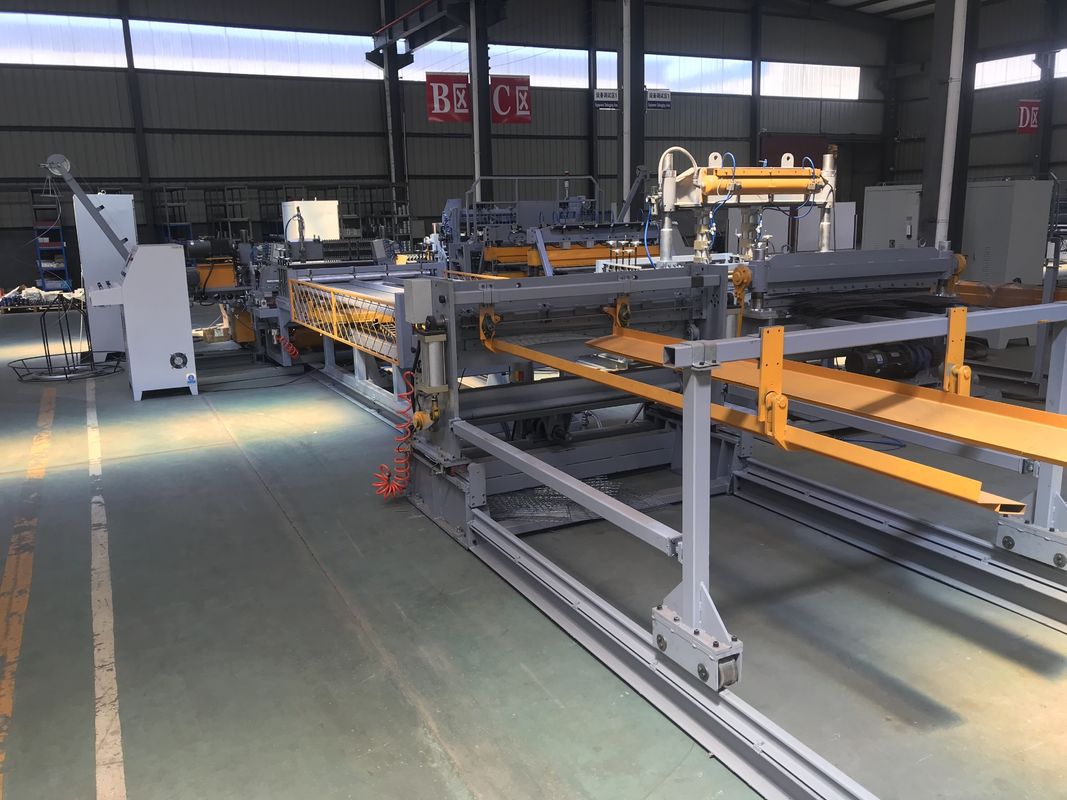

Good Quality And Competitive Price Wire Roll Mesh Welding Machine
Application field: this type of machine is mainly used for welding guardrail net (highway, railway, seine), fence net, bridge, pavement, floor pouring top net, coal mine support, etc. The length of the mesh is generally not more than 15 meters (if the customer has special requirements can be customized), the main parameters are as follows:
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢3.5+3.5mm | |
| 2 | Long wire diameter | ¢2-3.5mm | |
| 3 | Cross wire diameter | ¢2-3.5mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In coil | |
| 6 | Long wire spacing | ≥25mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥25mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤1300mm | Adjustable |
| 10 | Number of welding spot | 20PCS | |
| 11 | Working speed max. | 50-70times/min |
Welding forming mesh, the motor of Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Full Automatically Roll Mesh Welding Machine.
