| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Item: | Chicken Cage 2-3.5mm Wire Roll Mesh Welding Machine | Lead Time: | 20 Days |
|---|---|---|---|
| Welding Method: | Mechanical | Automation Degree: | Automatic |
| Certification: | CE ISO | Producton Capacity: | 25 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Highlight: | 3.5mm Wire Roll Mesh Welding Machine,2mm Wire Roll Mesh Welding Machine |
||

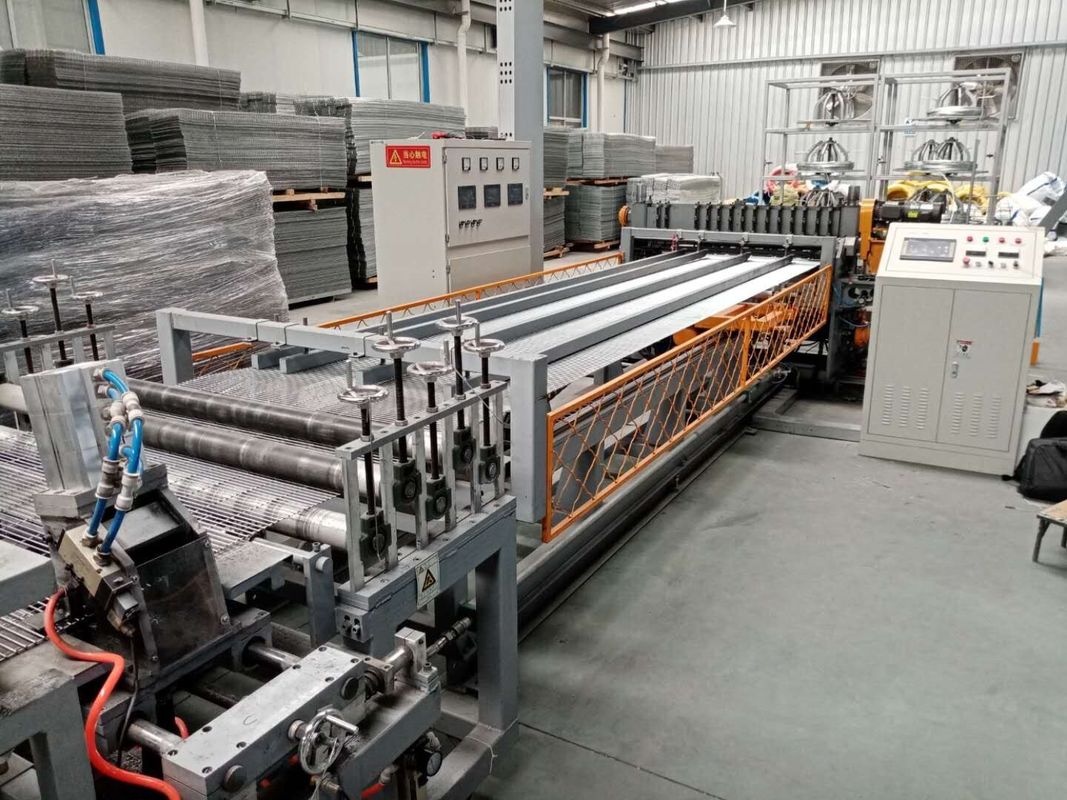

Chicken Cage 2-3.5mm Wire Roll Mesh Welding Machine
The two ends of the mesh pulling mechanism of the welding mesh machine are equipped with a limit switch to prevent the net pulling car from collision. When the net pulling car hits the limit switch, the limit switch action cuts off the power supply of the servo controller of the net pulling car, thus making the net pulling car stop automatically. Prevent mechanical damage caused by collision.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢3.5+3.5mm | |
| 2 | Long wire diameter | ¢2-3.5mm | |
| 3 | Cross wire diameter | ¢2-3.5mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In coil | |
| 6 | Long wire spacing | ≥25mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥25mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤1300mm | Adjustable |
| 10 | Number of welding spot | 20PCS | |
| 11 | Working speed max. | 50-70times/min |
Welding forming mesh, the motor of Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Full Automatically Roll Mesh Welding Machine.
