Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | GT6 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Type: | Automatic CNC Control Bar Wire Straightening And Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-8mm |
Welding Speed: | 120m/min | Lead Time: | 15 Days |
Certification: | CE ISO | Producton Capacity: | 100 Sets/Month |
Voltage: | 220V/380V/415V/440V | Control System: | PLC |
High Light: | Automatic Bar Straightening And Cutting Machine,8mm Bar Straightening And Cutting Machine |

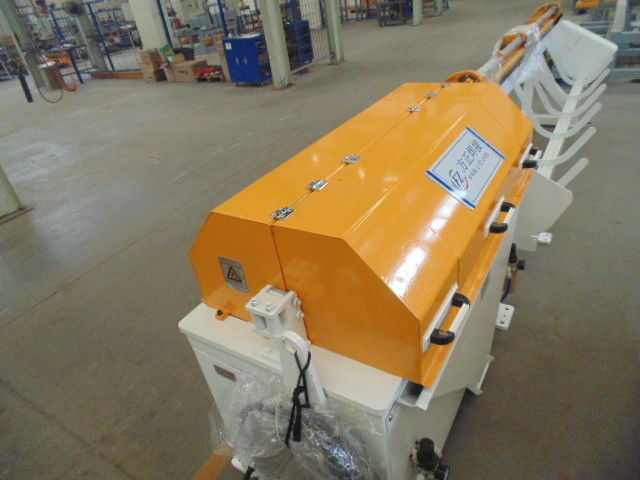

Automatic CNC Control Bar Wire Straightening And Cutting Machine
Lubricating oil must be added to the rolling friction parts such as bearing, gear, rack, linear slider and so on in time, and must not be run without oil. Lubricating oil should be added after shutdown. Lubricating oil must be added to the operation, not to touch the running mechanism with the tools, can be drip.
All parts of the machine should regularly remove the oil and dust from electrical appliances and circuits (such as transformers , circuit boards , etc .) (the dust should be blown away with compressed air) to keep the switch cont actor contacts good .Testing the insulation resistance of each 3 8 0 V control line with a 5 0 0 V to 1 0 0 0 V me gger shall comply with the regulations .Measure each low voltage and signal line with × 1 0 K resistance gear of multi meter without no leakage in the chassis housing.
No. | Name | Parameters |
1 | Wire diameter | 3.0-8.0mm |
2 | Straightening length | 500-6000mm |
3 | Cutting error | <±1mm |
4 | Straightening speed | 70-120m/min |
5 | Straightness | <2mm/m |
6 | Material | Cold drawn wire,Galvanized wire |
7 | Voltage fluctuation range | ±10% |
8 | Voltage | 380V 50HZ |
Notes to the Steel Wire Straightening And Cutting Machine:
1.The Steel Wire Straightening And Cutting Machine user must do the operation and maintenance in strict accordance with the equipment manual.
2. Prepare the site for Steel Wire Straightening And Cutting Machine installation must be according to the requirements
3. Supply power and gas according to the Steel Wire Straightening And Cutting Machine requirements.
4. Users are required to provide technical staff to assist in the installation, during installation, users need to install the Steel Wire Straightening And Cutting Machine provided free of charge auxiliary equipment.
5. The Steel Wire Straightening And Cutting Machine should be used in the workshop; the work environment will directly affect the performance and service life of the equipment.
Contact Person: Bella
Tel: +8613283273008
