| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | GT6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Type: | 2-12mm CNC Control Wire Straightening And Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Welding Speed: | 120m/min | Lead Time: | 10 Days |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC Control |
| Highlight: | 380V Wire Straightener And Cutter,2mm Wire Straightener And Cutter |
||

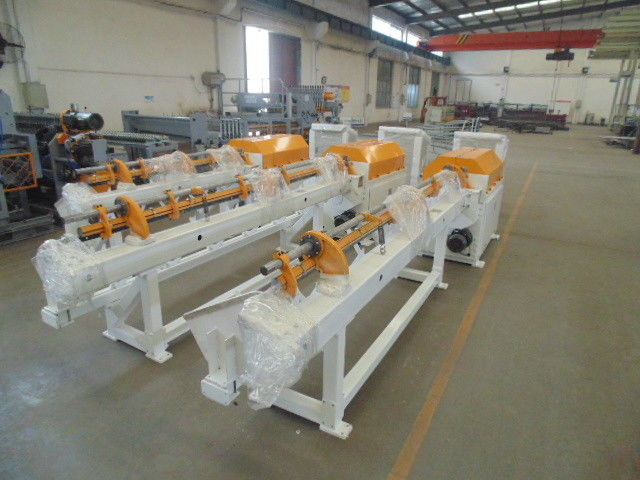

2-12mm CNC Control Wire Straightening And Cutting Machine
If you have packaging requirements for the equipment, please contact our company in time. Attention should be paid to:
Strong impact or drop should be avoided, otherwise it may cause component failure, product breakage, especially easily damaged precision instruments, instruments, electronic control devices and precision parts.
Attention should be paid to water, rain and moisture. The top of the box shall be lined with two layers of petroleum asphalt felt or plastic film, the area shall be greater than the top area, the circumferential extension part shall not be less than 100 mm, and then it shall be nailed to the wall or frame with a pressure plate.
The equipment shall be firmly cushioned, clamped and fixed in the shipping box to prevent movement or movement of the product during transportation.
This product shall not be bare in the open air, the outside of the equipment should be wrapped in plastic film, stored in dry and dust-free, non-explosive corrosive gas, no strong shock vibration indoor. Storage should not exceed half a year.
| No. | Name | Parameters |
| 1 | Wire diameter | 3.0-8.0mm |
| 2 | Straightening length | 500-6000mm |
| 3 | Cutting error | ＜±1mm |
| 4 | Straightening speed | 70-120m/min |
| 5 | Straightness | ＜2mm/m |
| 6 | Material | Cold drawn wire,Galvanized wire |
| 7 | Voltage fluctuation range | ±10% |
| 8 | Voltage | 380V 50HZ |
Notes to the Steel Wire Straightening And Cutting Machine:
1 . The Steel Wire Straightening And Cutting Machine user must do the operation and maintenance in strict accordance with the equipment manual.
2 . Prepare the site for Steel Wire Straightening And Cutting Machine installation must be according to the requirements
3 . Supply power and gas according to the Steel Wire Straightening And Cutting Machine requirements.
4 . Users are required to provide technical staff to assist in the installation, during installation, users need to install the Steel Wire Straightening And Cutting Machine provided free of charge auxiliary equipment.
5 . The Steel Wire Straightening And Cutting Machine should be used in the workshop; the work environment will directly affect the performance and service life of the equipment.
