Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-33Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | High Speed 3D Fence Panel Wire Mesh Bending Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Voltage: | 220V/380V/415V/440V | Wire Diameter Range: | 3-6mm |
Machinery Test Report: | Provided | Key Selling Points: | 3D Fence Mesh |
Color: | Can Be Customized | Usage: | 3D Fence Mesh |
Lead Time: | 7 Days | Certification: | CE ISO |
Highlight: | 3D Panel Wire Mesh Bending Machine,Dia 6mm Wire Mesh Bending Machine,3D Fence Panel Bending Machine |

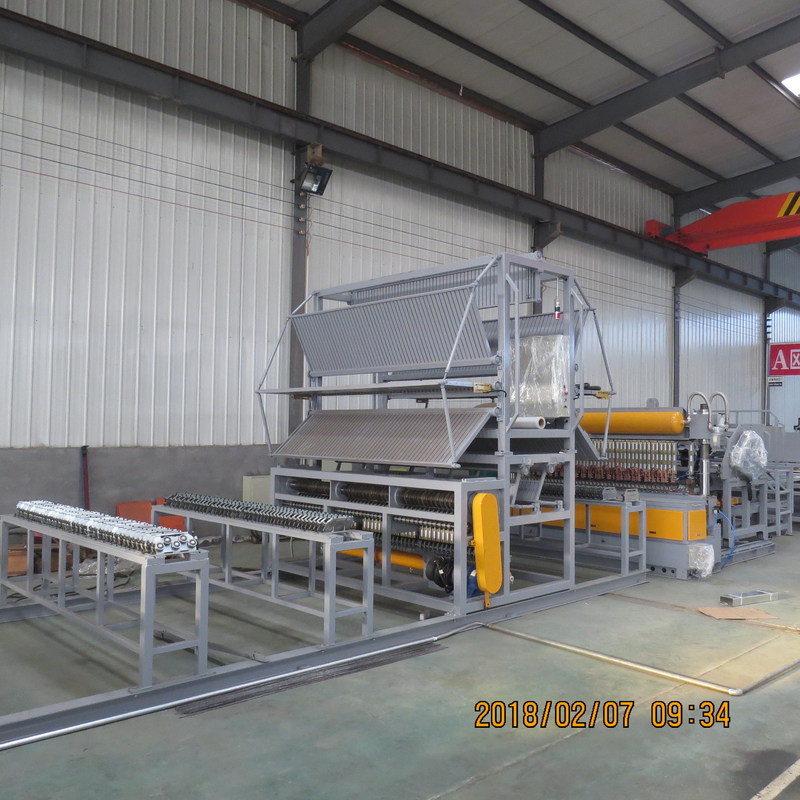

High Speed 3D Fence Panel Wire Mesh Bending Machine
If the machine is not used for a long time, it is necessary to cut off the main power supply, ensure safety, cut off the supply of gas and waterway, do rust-proof treatment to the machine, can apply antirust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil to the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Keep the machine storage place clean, no corrosive liquid, water, no dangerous goods storage.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 6+6mm | |
2 | Long wire diameter | ¢3-6mm | |
3 | Cross wire diameter | ¢3-6mm | |
4 | Long wire feeding method | In pre-cut | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤3000mm | Adjustable |
9 | Width range of wire mesh | ≤1300mm | Adjustable |
10 | Number of welding spot | 16PCS | |
11 | Working speed max. | 40-60times/min |
Our company can tailor-made various series of mesh welding equipments depending on different fields, including reinforcing mesh welding production line, autoclaved aerated panel mesh welding line, mine supporting mesh welding line, 3D oblique frame welding production line, fence mesh welding production line, shelf mesh welding production line, shelters mesh welding production line, storage cage mesh welding production line, mesh basket welding production line, pet cage mesh welding production line, protective shield mesh welding production line, trolley mesh welding production line, breeding mesh welding production line, high speed wire straightening & cutting machine and etc. Since the products has been launched into the market, we have obtained high praise from numerous customers because of its high automation, high stability, convenient operation and etc.
Contact Person: Bella
Tel: +8613283273008
