Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | 3-6mm 3D Fence Welding Machine Match Wire Mesh Bending Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Voltage: | 220V/380V/415V/440V | Wire Diameter Range: | 3-6mm |
Machinery Test Report: | Provided | Key Selling Points: | Mesh Bending |
Color: | Customized | Usage: | Mesh |
Lead Time: | 20 Days | Certification: | CE ISO |
High Light: | Customized Steel Sheet Bending Machine,Diameter 3mm Steel Sheet Bending Machine,Customized Wire Mesh Bending Machine |

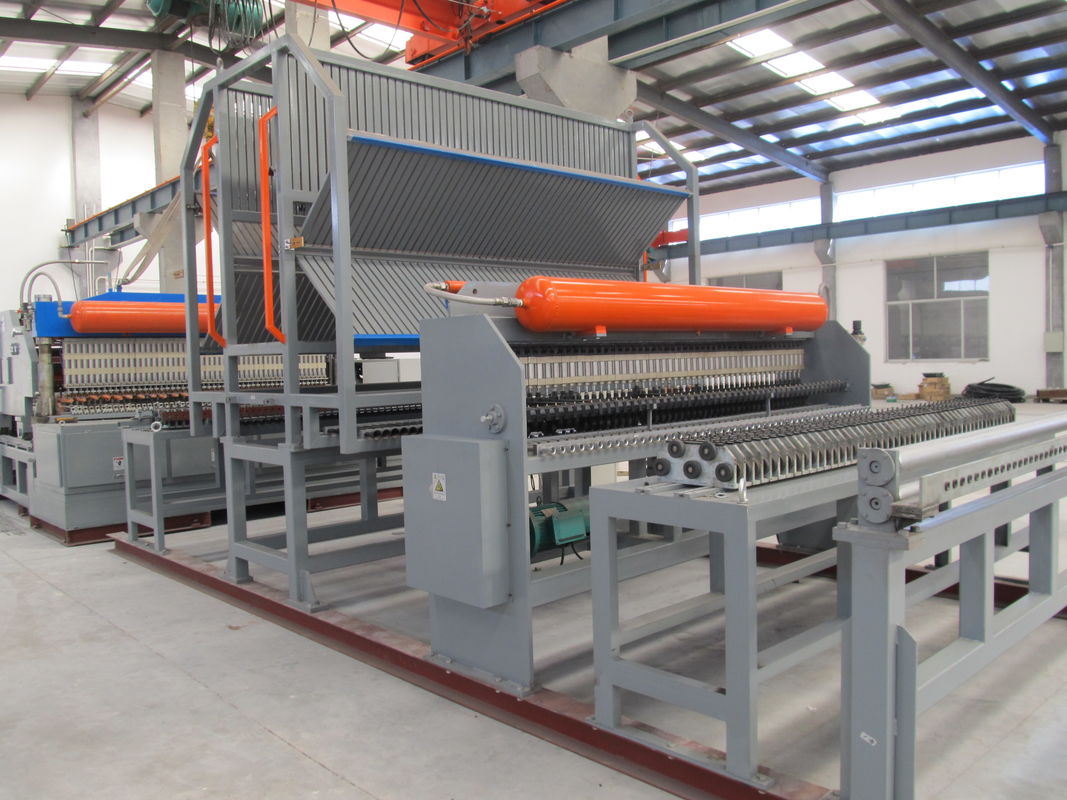

3-6mm 3D Fence Welding Machine Match Wire Mesh Bending Machine
The warp-wire template is composed of a lifting mechanism, a V type template, a template trolley, etc. When the warp-wire falls on the V slot template of the warp-wire template and the wire is detected on the probe switch, the warp-wire template trolley runs step by step to the next drop position, the warp-wire falling device works and the wire falls to the V type template, so that the wire runs directly to the falling position of the template when the warp-wire template reaches the set root number. When the warp-wire template can drop, the warp-wire template lifting mechanism works and the mesh is placed on the V slot template supported by the warp-wire, And return to the origin of the meridian template, after reaching the origin, the meridian template uplift, waiting for the next mesh blanking.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 6+6mm | |
2 | Long wire diameter | ¢3-6mm | |
3 | Cross wire diameter | ¢3-6mm | |
4 | Long wire feeding method | In pre-cut | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤3000mm | Adjustable |
9 | Width range of wire mesh | ≤1300mm | Adjustable |
10 | Number of welding spot | 16PCS | |
11 | Working speed max. | 40-60times/min |
Our company can tailor-made various series of mesh welding equipments depending on different fields, including reinforcing mesh welding production line, autoclaved aerated panel mesh welding line, mine supporting mesh welding line, 3D oblique frame welding production line, fence mesh welding production line, shelf mesh welding production line, shelters mesh welding production line, storage cage mesh welding production line, mesh basket welding production line, pet cage mesh welding production line, protective shield mesh welding production line, trolley mesh welding production line, breeding mesh welding production line, high speed wire straightening & cutting machine and etc. Since the products has been launched into the market, we have obtained high praise from numerous customers because of its high automation, high stability, convenient operation and etc.
