Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Semi - Automatic Outdoor Garden Double Wire Mesh Bending Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Voltage: | 220V/380V/415V/440V | Wire Diameter Range: | 6+8+6mm |
Machinery Test Report: | Provided | Key Selling Points: | Outdoor Garden Fence Mesh |
Color: | Customized | Usage: | Garden Fence Mesh |
Lead Time: | 25 Days | Certification: | CE ISO |
Highlight: | Semi Automatic Wire Mesh Bending Machine,686 Wire Mesh Bending Machine,686 Mesh Bending Machine |

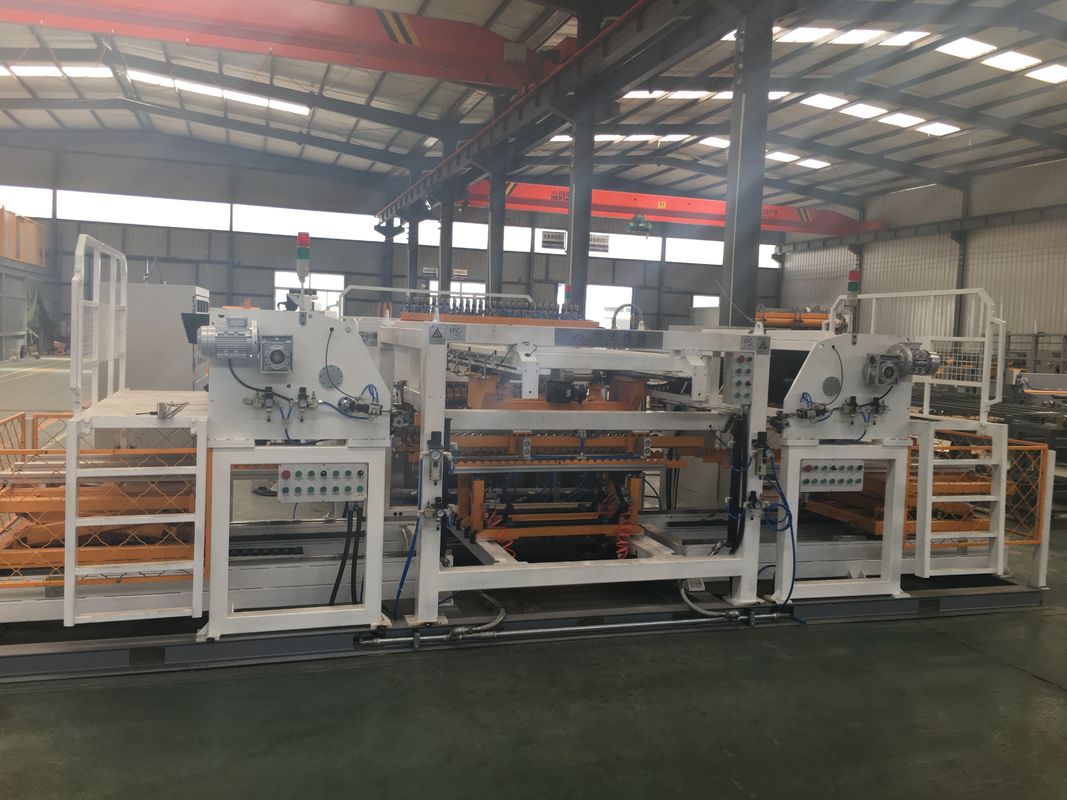

Semi - Automatic Outdoor Garden Double Wire Mesh Bending Machine
The main structure of the welding mesh host is mainly composed of the main frame, the upper welding frame, the bottom beam mechanism, the welding transformer, the pushing mechanism and so on. All of the above mechanisms are assembled on the frame frame of plate and frame door to form a solid and solid host body with good man-machine relationship.
The main frame is welded by iron plate and I-steel, with stable structure and clean appearance. Other mechanisms are either mounted on them or connected to them in some way.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 6+6mm | |
2 | Long wire diameter | ¢3-6mm | |
3 | Cross wire diameter | ¢3-6mm | |
4 | Long wire feeding method | In pre-cut | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤3000mm | Adjustable |
9 | Width range of wire mesh | ≤1300mm | Adjustable |
10 | Number of welding spot | 16PCS | |
11 | Working speed max. | 40-60times/min |
Our company can tailor-made various series of mesh welding equipments depending on different fields, including reinforcing mesh welding production line, autoclaved aerated panel mesh welding line, mine supporting mesh welding line, 3D oblique frame welding production line, fence mesh welding production line, shelf mesh welding production line, shelters mesh welding production line, storage cage mesh welding production line, mesh basket welding production line, pet cage mesh welding production line, protective shield mesh welding production line, trolley mesh welding production line, breeding mesh welding production line, high speed wire straightening & cutting machine and etc. Since the products has been launched into the market, we have obtained high praise from numerous customers because of its high automation, high stability, convenient operation and etc.
