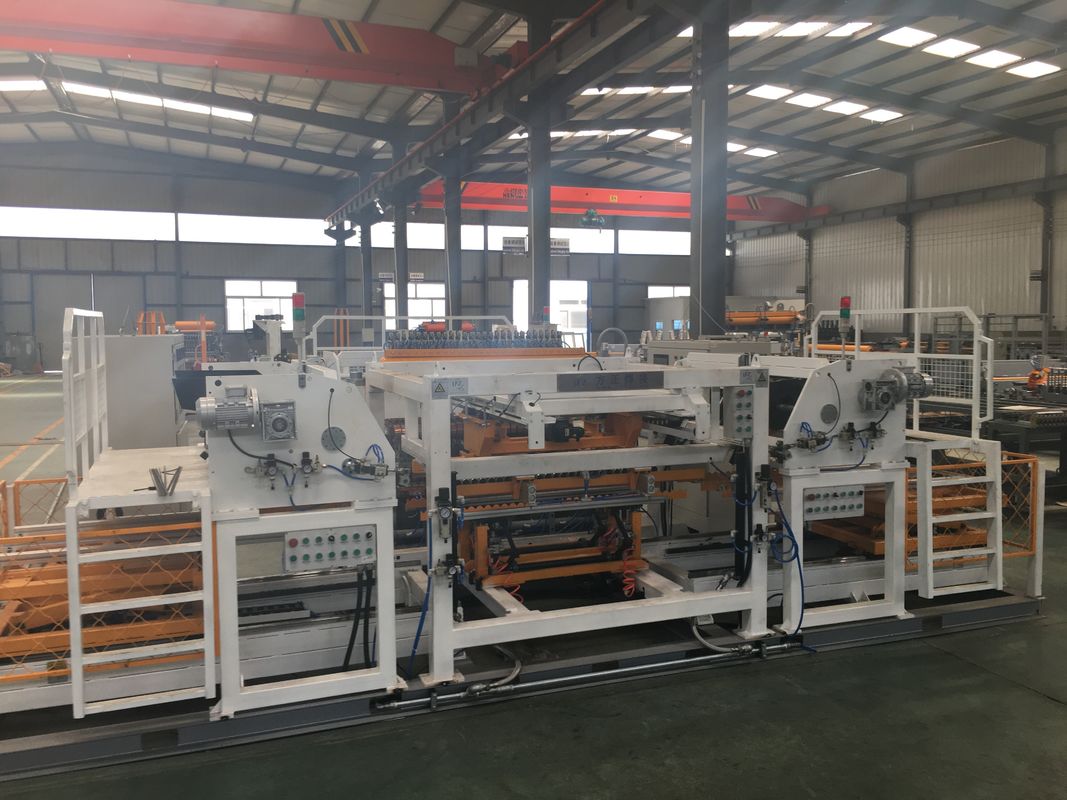

Pneumatic 380V 3phase Fence Mesh Welding Machine For Galvanized Panel

High Quality Galvanized Panel Fence Mesh Welding Machine

Pneumatic welding mechanism consists of beam, insulation board, welding cylinder, upper electrode, serial circuit and so on. The beam is welded into section steel. The cylinder is installed through insulation board and beam, and the welding cylinder is a 3-link force increasing cylinder, which fully improves the welding pressure and ensures the welding quality. The welding head block material is chromium zirconium copper, which is widely used and recognized as the best resistance welding head material. Welding cylinder and upper electrode can adjust the spacing to meet the different needs of customers for welding mesh. When welding is needed, the weft wire falls into the electrode position, the cylinder pushes the weft wire, the welding cylinder presses down, the given welding signal begins to weld, after welding, the welding cylinder rises, the mesh step by step, and the next welding is carried out.

This device is the core part of Fence Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.

The welding electrodes head of Fence Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.

The improvement of design of welding transformers of Fence Mesh Welding Machine meets the demand to weld continuously wires of 8+8+8mm at a high speed at the moment when saving energy.

Fence Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
