| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatic Bending Steel Rebar 3D Fence Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | 2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60times/min | Machinery Test Report: | Provided |
| Key Selling Points: | Pre-cut Long Wire Feeding Automatically | Color: | Customized |
| Highlight: | Accuracy 0.01mm Fence Mesh Welding Machine,250KVA Fence Mesh Welding Machine,250KVA Automatic Mesh Welding Machine |
||

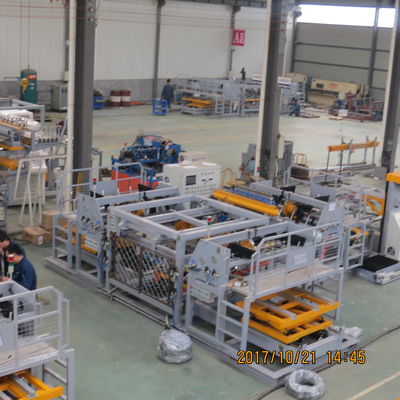

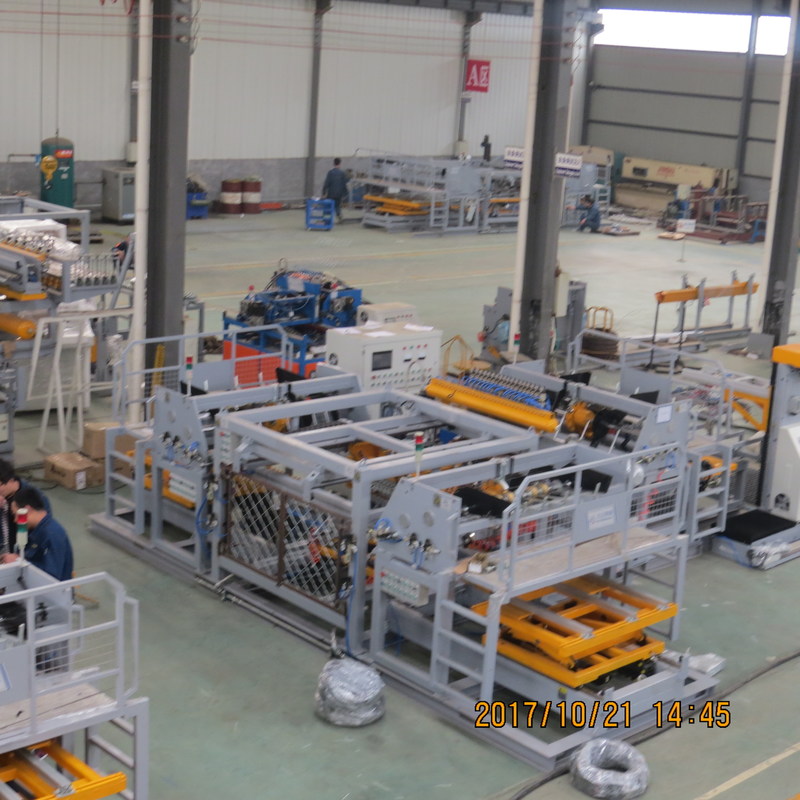

Automatic Bending Steel Rebar 3D Fence Mesh Welding Machine
A net pulling mechanism is composed of a linear slider track, a hook device and a net pulling trolley. The net pulling trolley is driven by servo motor. After deceleration through precision reducer and gear, the rotation is converted into linear motion by gear rack pair. The theoretical control accuracy is 0.01mm.
When the warp wire is sent to the number of progress, the hook device lifts and clamps the mesh. After the welding cylinder is lifted, the pull-net car steps further to weld the next mesh. Hook the mesh, loosen the hook, return to the next hook, and wait for the next step. When the mesh pulling mechanism can not pull out the mesh at one time, the mesh pulling car will return to the second hook position of the current mesh according to the set step return position until the whole mesh is welded.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Fence Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Fence Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Fence Mesh Welding Machine meets the demand to weld continuously wires of 8+8+8mm at a high speed at the moment when saving energy.
Fence Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
Contact Person: Bella
Tel: +8613283273008
