| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | High Speed Reinforcing Steel Rebar Fence Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 6mm |
| Mesh Size: | 2500mm*3000mm | Mesh Hole Size: | 50*250mm |
| Welding Speed: | 40-60times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Long Wire Feeding Automatically | Color: | Can Be Customized |
| Highlight: | Wire 6mm Fence Mesh Welding Machine,60times/Min Fence Mesh Welding Machine,Wire 6mm Fence Welding Machine |
||

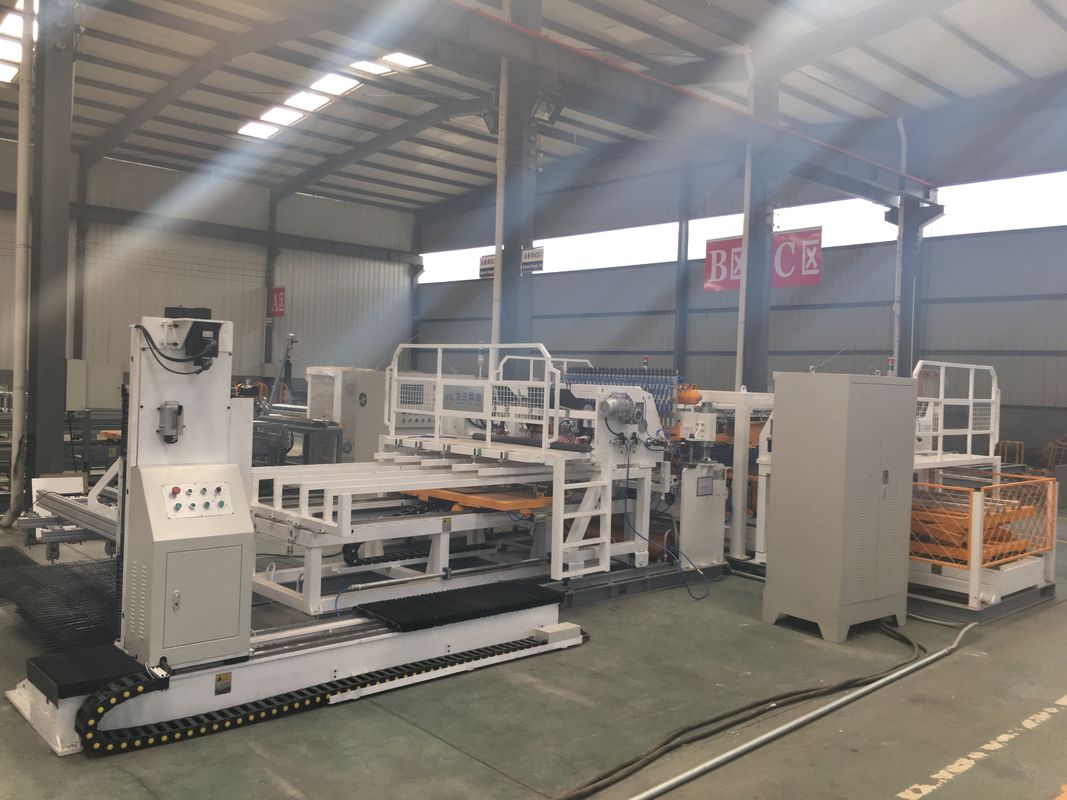

High Speed Reinforcing Steel Rebar Fence Mesh Welding Machine
The weft bending mechanism is composed of supporting frame, upper tool assembly, lower tool assembly and lifting mechanism. When bending is needed, the bending cylinder works, the lower knife is lifted up upward and the mesh is bent. After the upper position is reached, the cylinder drops to the original position at the bottom for a period of time. Complete the bending process.
The intermediate feeding mechanism consists of support frame , straight rail , hook device and intermediate delivery trolley .When the mesh mechanism pulls the mesh to the end position , the middle into the hook device hook the mesh , the mesh to the bending mechanism , the bending mechanism began to work , complete the first bend , the middle into the car to the end position , such as the mesh mechanism , return to the origin position , the next mesh hook.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Fence Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Fence Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Fence Mesh Welding Machine meets the demand to weld continuously wires of 8+8+8mm at a high speed at the moment when saving energy.
Fence Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
