| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Full Automatic Steel Rebar Fence Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 4-6mm |
| Mesh Size: | 2500mm*3000mm | Mesh Hole Size: | 50*250mm |
| Welding Speed: | 40-60times/min | Machinery Test Report: | Provided |
| Voltage: | 220V/380V/415V/440V | Color: | Can Be Customized |
| Highlight: | Steel Rebar Fence Mesh Welding Machine,ISO Fence Mesh Welding Machine,ISO Rebar Welding Machine |
||

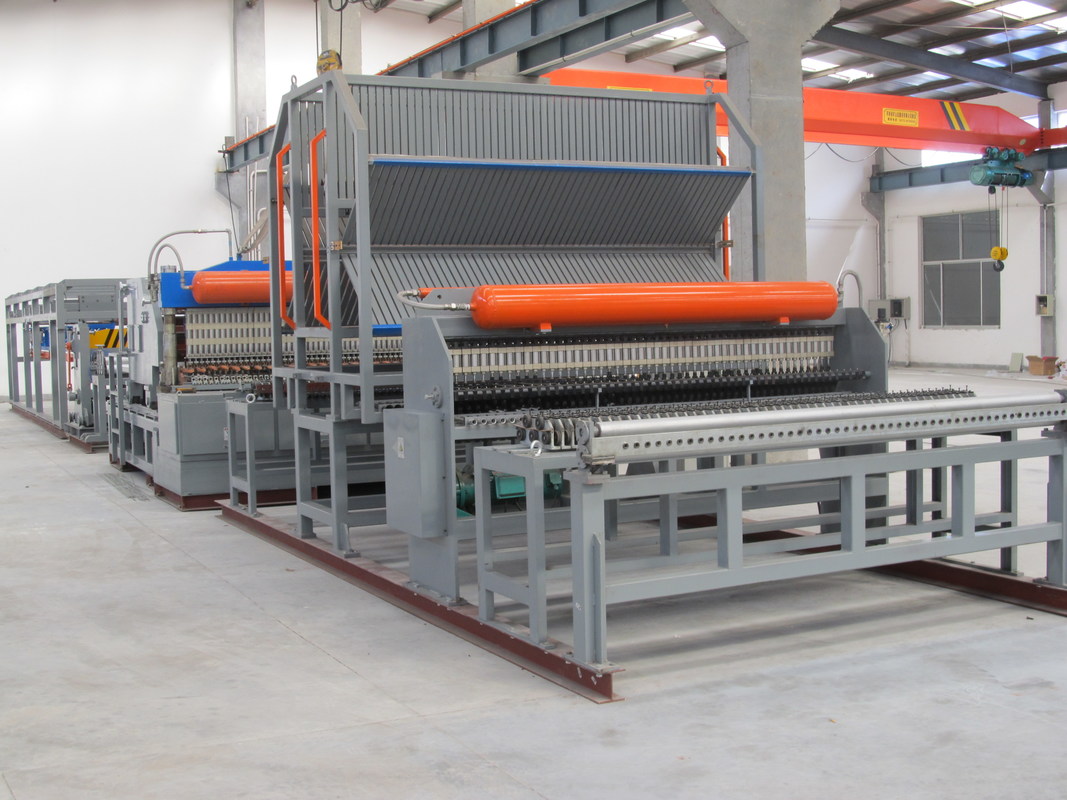

Full Automatic Steel Rebar Fence Mesh Welding Machine
It mainly consists of the main frame , code network pulling device , network catching device , mesh plate push up and chain operation .After sending the mesh to the end , the grasp of the code network , by the grasp of the mesh , run to the second bending position , the mesh , bending to run again , until all the bends on the mesh are completed , pull the mesh to the arrested area , the mesh device release the mesh , the mesh fell to the following transport chain , and then back to the origin , start the grasp of the next mesh .The mesh falling on the chain is pushed together by the push - up mechanism . When the mesh falls until the quantity , the chain runs the mesh to the unloading section to wait for the mesh to be removed .
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Fence Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Fence Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Fence Mesh Welding Machine meets the demand to weld continuously wires of 8+8+8mm at a high speed at the moment when saving energy.
Fence Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
