| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatic Pneumatic Reinforcing Rebar Panel Fence Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V | Wire Diameter Range: | 3-6mm |
| Mesh Size: | 3000mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60times/min | Machinery Test Report: | Provided |
| Key Selling Points: | Automatically | Color: | Customized |
| Highlight: | Automatic Fence Mesh Welding Machine,Pneumatic Fence Mesh Welding Machine,3000mm Pneumatic Welding Machine |
||

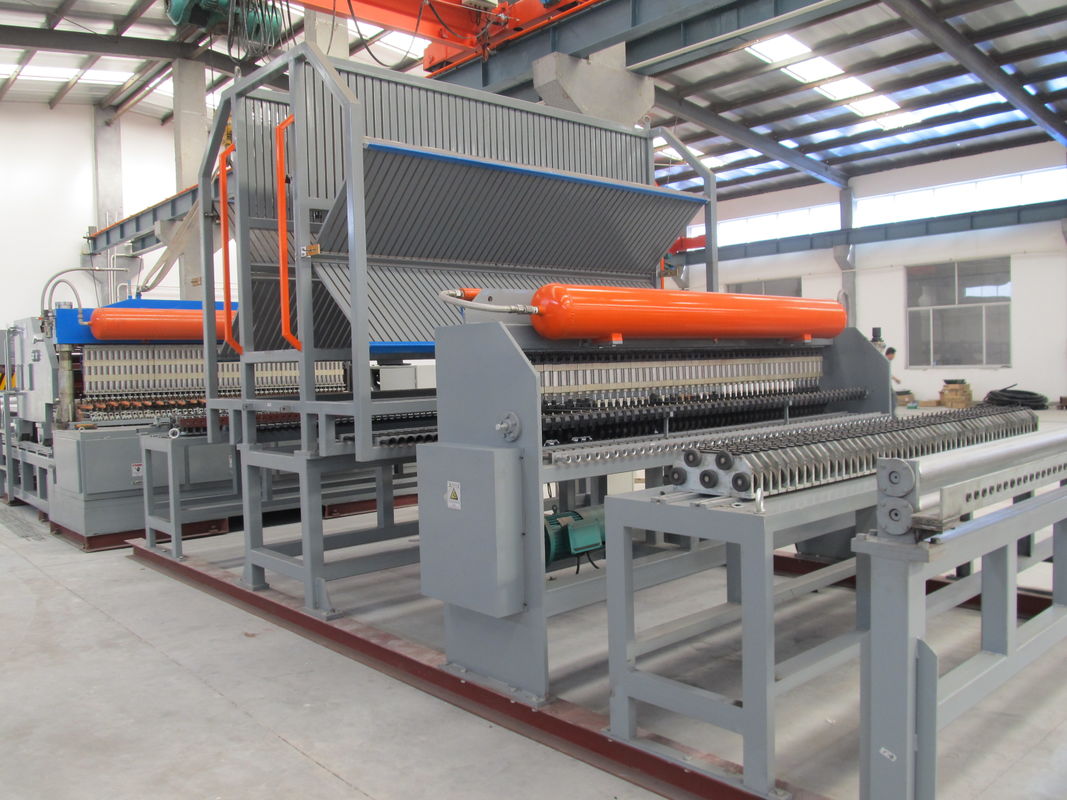

Automatic Pneumatic Reinforcing Rebar Panel Fence Mesh Welding Machine
The welding host of the welding mesh machine adopts the water cooling system .The upper and lower electrode seats on the main machine are cooled by water and supplied by water pumps for pools of 8 ~ 1 2 square meters .Pay attention to the clean cleaning of the cooling water and replace it every six months.
Welding and control circuit consists of control power cabinet and power distribution cabinet .The welding is micro computer control , silicon controllable conduction angle can reach 30 - 170 , once pressure , welding multiple times , making the welding more reliable , more stable , more fast , and reduce the burn degree of the welding point.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Fence Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Fence Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Fence Mesh Welding Machine meets the demand to weld continuously wires of 8+8+8mm at a high speed at the moment when saving energy.
Fence Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
Contact Person: Bella
Tel: +8613283273008
