| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Numerical Control 2-4mm Diameter Wire Fence Mesh Mesh Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-4mm |
| Mesh Hight: | ≤1300mm | Mesh Hole Size: | 25*25mm |
| Welding Speed: | 50-70 Times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Numerical Control | Color: | Grey & Yellow Or Can Be Customized |
| Certification: | CE | Producton Capacity: | 50 Sets/Month |
| Highlight: | 2mm wire mesh welding machine,4mm fence mesh mesh machine,415v fence mesh mesh machine |
||

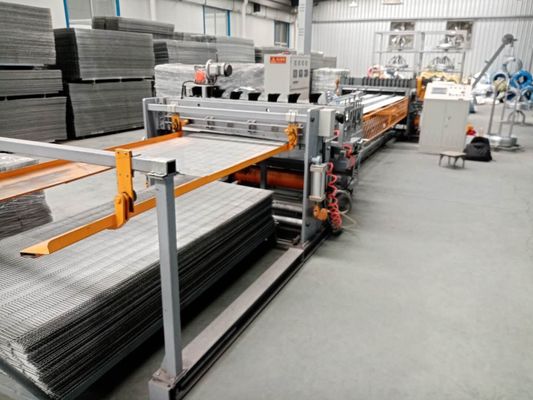

Numerical Control 2-4mm Diameter Wire Fence Mesh Mesh Machine
Welding transformers are arranged in order from the host operating console.The secondary conductors of the transformer are connected to each set of electrode seats through multiple layers of copper skins.Welwelding transformer is of iron shell type and its primary winding is disc type.During welding, select the adjustment series according to the nature, diameter of the solder and contact surface to obtain the required series current.Usually, the larger the diameter, the better the surface conductivity, and the greater the electrode pressure, the welding current should increase accordingly.Welding time can be adjusted from 0.01 ~ in 1 second according to the welding diameter.Usually the larger the welding diameter, the welding time and welding current will increase.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 150KVA | ||
| Cable specification | 120mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | Screw type |
0.6-0.8mpa Distance 3m |
| Air production | 1m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
The wires from coils are firstly straightened through this device in order to ensure that welding mesh will be more even. It is essential to the whole line.
There are 30PCS longitudinal wire straightening unit, each unit has 5pcs wheels, it fits for straitening wire diameter 1-2 mm.
Each unit has the special structure and the distance among each wheel is calculated accurately. So it can straighten different materials such as galvanizing wires, cold-rolled ribbed wires, low-carton black wires, etc.
Each straightening unit adopts tungsten steel as the material; the overall is with high wear resistance.
