| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-16J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatically Side Mesh Chicken Mesh Making Machine | Key Selling Points: | Energy Saving |
|---|---|---|---|
| Color: | Grey& Yellow | Lead Time: | 30 Days |
| Automation Degree: | Full Automatic | Certification: | CE ISO |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | Galvanized Wire Mesh Making Machine | Cross Wire Space: | >=25mm,Min.20mm |
| Highlight: | programming control chicken mesh making machine,chicken mesh making machine 415v,plc wire mesh welder 415v |
||

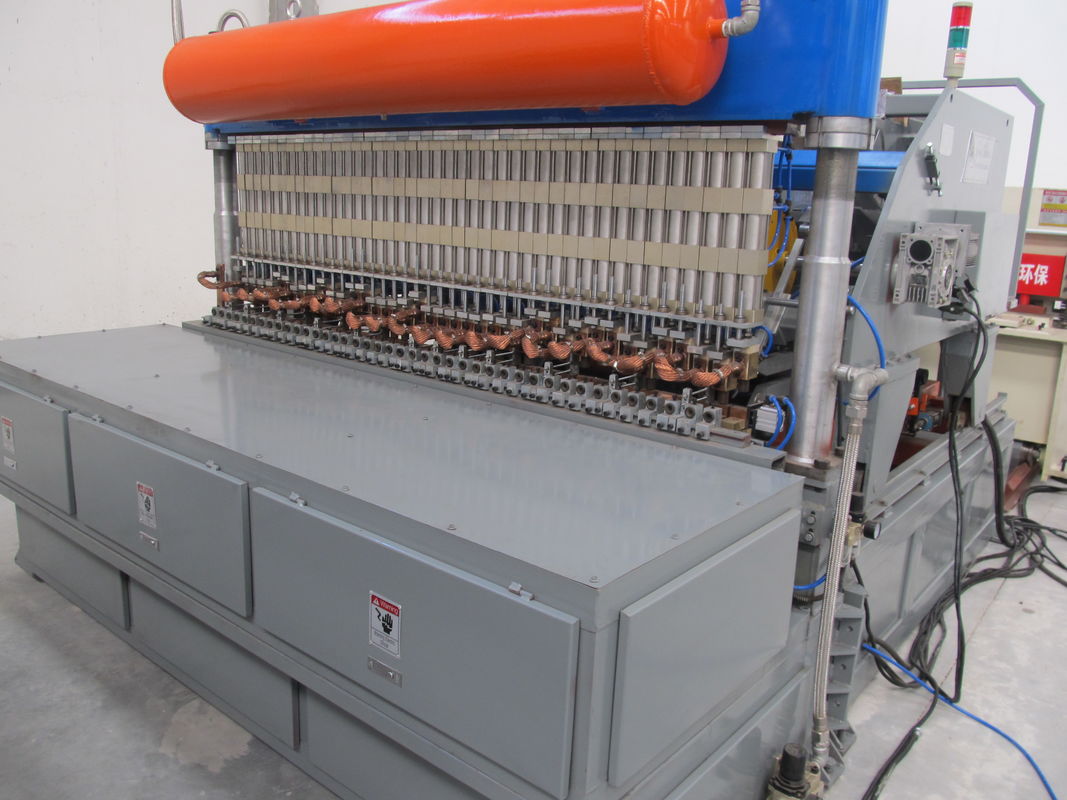

Automatically Side Mesh Chicken Mesh Making Machine
The overall equipment adopts PLC programming control, humanized operation interface, easy to operate and master. The mesh specification adjustment can be edited through the LCD touch screen, Operating system, CNC servo system, stable performance, to meet the needs of high-speed welding mesh.
The control cabinet is equipped with a cooling device to bring a good working temperature to the whole control cabinet.
Equipment welding controller customized products for professional manufacturers.
the cross wire mesh spacing can be adjustable by computer in free
| Welding method | Mechanical push down | |
| Control method | PLC programming control | |
| Welding control | Each transformer has independent microcomputer control | |
| Transformer power | 150KVA*5 set | |
| The Allowed Fluctuation Range for External Power | ±10% | |
| Voltage | 380V 3phase 50HZ | Can be customize |
| Compressor | 0.6-0.8mpa | |
| cooling method | Water cooling | |
| Equipment color | Silver ash, lemon yellow | |
| Material |
low carbon cold drawn wire, galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
The overhangs of meshes cut by this device are very short, which can save material cost for you.
The length of the steel mesh can be arbitrarily settled by editing the Energy Saving Automatic Breed Chicken Mesh Making Machine production parameters to meet different needs.
The cutting range of mesh width Is 1600mm. It can be adjusted according to Energy Saving Automatic Breed Chicken Mesh Making Machine user needs.
The cutting speed of Energy Saving Automatic Breed Chicken Mesh Making Machine mesh is controlled by the PLC
Energy Saving Automatic Breed Chicken Mesh Making Machine adopts pneumatic cutting with big pressure, which can easily cut 27 pcs wires with diameter 2-3.5mm.
