| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | GT3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Type: | 2-3.5mm CNC High Speed Wire Straightening And Cutting Machine | Material Of Machine: | Heavy Plates And Section Bars |
|---|---|---|---|
| Wire Diameter Range: | 2-3.5mm | Welding Speed: | 100-120m/min |
| Lead Time: | 15 Days | Certification: | CE ISO |
| Producton Capacity: | 100 Sets/Month | Voltage: | Can Be Customized |
| Control System: | PLC | Color: | Can Be Customized |
| Highlight: | automatic wire straightening and cutting machine cnc,3.5mm automatic wire straightening and cutting machine,2mm straight and cut wire machine |
||

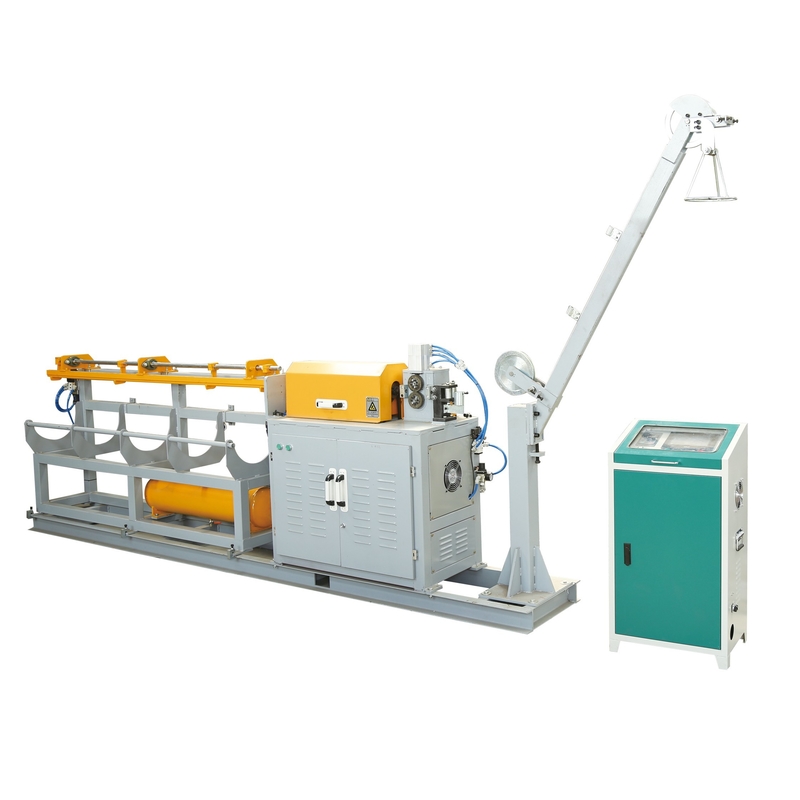

2-3.5mm CNC High speed wire straightening and cutting machine
Product feature
High precision
High straightening speed, stable
Convenient operation
Automatically detects failure
Full CNC operation interface
Pause sensitive
The tip of the shovel should exceed the appropriate distance from the center of gravity.
When unpacking, the top cover and four-side packaging must not fall into or squeeze into the packing box, so as to avoid damage to the machine parts or electrical parts.
After unpacking the equipment, first find the random documents, find out the equipment packing list, and check whether the parts, cables, data in each packing box are complete according to the packing list.
Before assembly of all equipment components, check the connection fasteners and line joints for loosening and damage.
| No. | Name | Parameters |
| 1 | Wire diameter | 2.0-3.5mm |
| 2 | Straightening length | 500-2000mm |
| 3 | Cutting error | ＜±1mm |
| 4 | Straightening speed | 100-120m/min |
| 5 | Straightness | ＜2mm/m |
| 6 | Material | Cold drawn wire,Galvanized wire |
| 7 | Voltage fluctuation range | ±10% |
| 8 | Voltage | 380V 50HZ |
Notes to the 2-3.5mm CNC High speed wire straightening and cutting machine:
1. The 2-3.5mm CNC High speed wire straightening and cutting machine user must do the operation and maintenance in strict accordance with the equipment manual.
2. Prepare the site for 2-3.5mm CNC High speed wire straightening and cutting machine installation must be according to the requirements
3. Supply power and gas according to the 2-3.5mm CNC High speed wire straightening and cutting machine.
4. Users are required to provide technical staff to assist in the installation, during installation, users need to install the 2-3.5mm CNC High speed wire straightening and cutting machine provided free of charge auxiliary equipment.
5. The 2-3.5mm CNC High speed wire straightening and cutting machine should be used in the workshop; the work environment will directly affect the performance and service life of the equipment.
