| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatically Operation Weld Firmly Safety Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | 3000mm | Mesh Hole Size: | 50*12.5mm |
| Welding Speed: | 40-60times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | High Presion | Color: | Grey& Yellow Or Can Be Customized |
| Highlight: | automatically wire mesh welder weld firmly,380v wire mesh welder,380v automatic wire mesh welding machine |
||
Automatically Operation Weld Firmly Safety Mesh Welding Machine
Switch the screen to the data input and write the specification of the welded mesh to the data input.

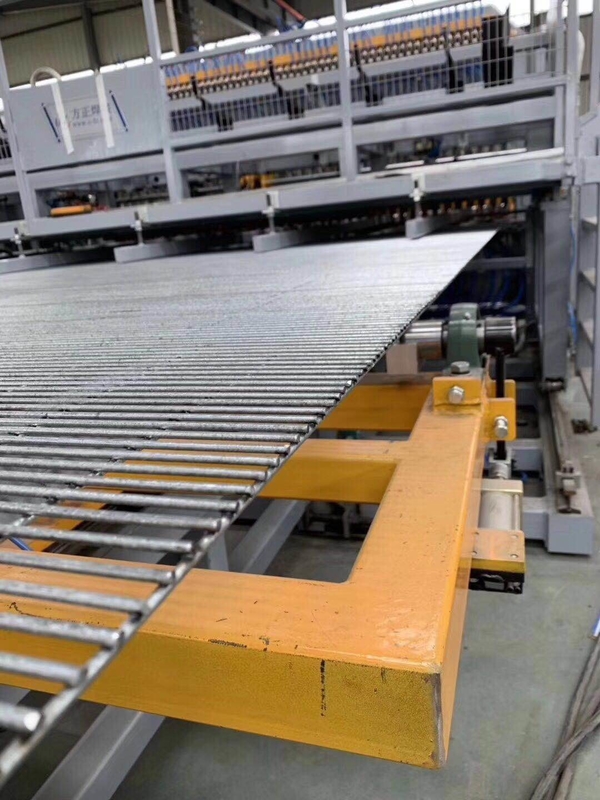

Press the start button to start the mesh welding. When a piece of welding is finished, the mesh pulling car automatically pulls a distance forward (this distance can be set by the total length of the touch screen) and then the mesh pulling automatically loosens and falls, returning to the origin for a second puller.
After the mesh is cut, the mesh stacking mechanism carries on the layering code, pulls out after the number to carry on the next working procedure processing.
Second welding as long as the pull-off car back to the origin, press the automatic start button can be.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Automatically Operation Weld Firmly Safety Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Automatically Operation Weld Firmly Safety Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Automatically Operation Weld Firmly Safety Mesh Welding Machine meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
Automatically Operation Weld Firmly Safety Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
