| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE,ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 50days |
| Payment Terms: | L/C, T/T, Western Union |
| Weight: | 12t | Dimensions: | 6000*2500*1800 MM |
|---|---|---|---|
| Type: | Welding Wire Machine | Condition: | New |
| Welding Speed: | 40-70 Times/min | Wire Diameter: | 6mm-12mm |
| Warranty: | 1 Year | Rated Voltage: | 380V/220V/410V 50HZ/60HZ As Buyers Requirement |
| Color:: | Gray And Yellow | Voltage: | 380V |
| Rated Capacity: | 125KVA*9 | Mesh Width: | 3000mm(customized) |
| Highlight: | width 3000mm mesh welding machine,high frequency mesh welding machine,6mm wire mesh welding machine |
||

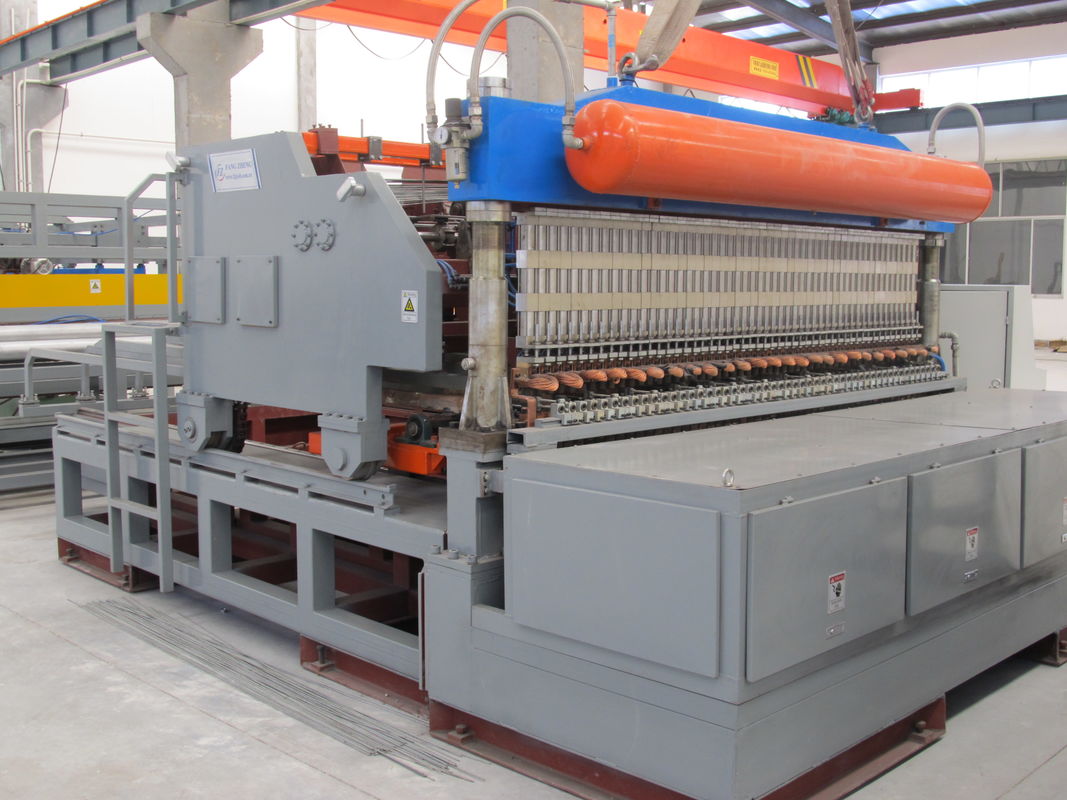

High Frequency Welding Machine For Width 3000mm Mesh Machine
The whole equipment adopts PLC programming control, with humanized operation interface, easy to operate and master.The adjustment of mesh size adopts LCD touch screen editing, and all production data setting is convenient and fast.All parts of the operating system and CNC servo system are made of famous brands in Taiwan, with stable performance, meeting the needs of high-speed welding mesh.The operation platform has two selection modes: manual and automatic.Welding parameters can be set and stored in PLC, without loss when power failure.
The welding electrodes head use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.The improvement of design of welding transformers meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
the mesh packing system is made with the roll to make sure the mesh panel can be send by automacti.
| Working speed max. | 40-70 Times/Min. |
| Width range of wire mesh | 1000- 3000mm |
| Length range of wire mesh | 1000-12000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming it can be adjustments |
| Max. welding capacity | 12+12mm |
