| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Construction Used High Speed Reinforcing Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 5-12mm |
| Mesh Hight: | 1000-3000mm | Mesh Hole Size: | 100*100mm |
| Welding Speed: | 40-60 Times/min | Voltage: | 220V/380V/415V/440V |
| Color: | Grey& Yellow Or Can Be Customized | Mesh Length: | 1000-12000mm |
| High Light: | 60 Times/Min Construction Mesh Welding Machine,ISO Construction Mesh Welding Machine,ISO Wire Mesh Welding Machine |
||

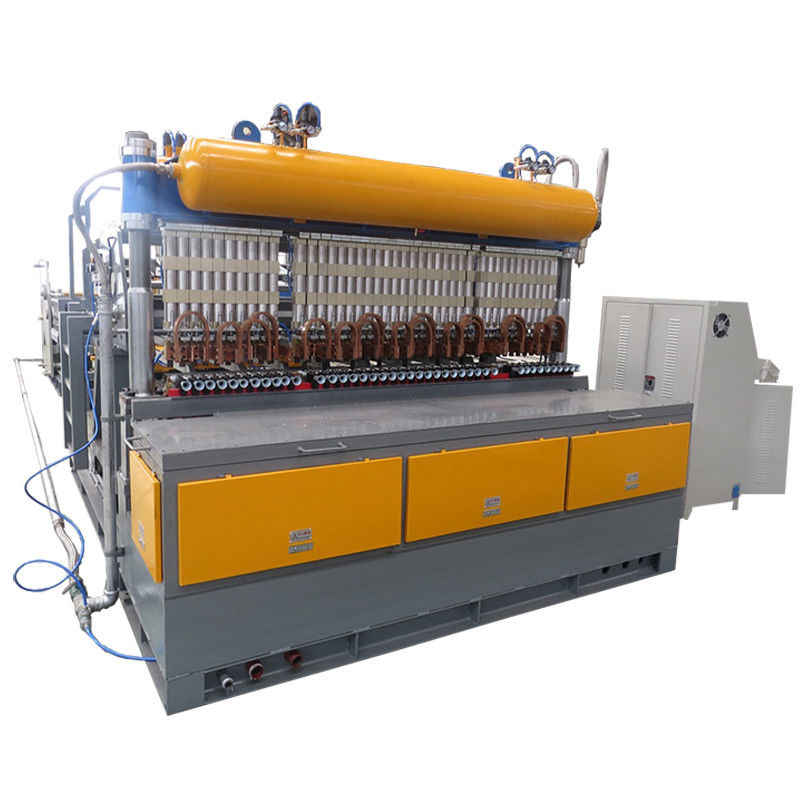

Construction Used High Speed Reinforcing Mesh Welding Machine
We ensure that we will continuously improve and perfect the appearance, quality, performance and after-sales service of the products and try our best to provide the products with good quality and after-sales service for our customers. We believe that you will think each of our welding equipments is worth its price after you use it.
The straight thread is manually penetrated into the positioning bell mouth of the mechanism in turn, the switch is started, the pneumatic clamp clamps the steel wire, the servo motor drive is fed into the welding host for welding, then the net pulling car is pulled, and the car is sent back.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢12+12mm | |
| 2 | Long wire diameter | ¢5-12mm | |
| 3 | Cross wire diameter | ¢5-12mm | |
| 4 | Long wire feeding method | In pre-cut | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥100mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥100mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤12000mm | Adjustable |
| 9 | Width range of wire mesh | ≤3000mm | Adjustable |
| 10 | Number of welding spot | 29PCS | |
| 11 | Working speed max. | 40-60times/min |
This device is the core part of Construction Used High Speed Reinforcing Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Construction Used High Speed Reinforcing Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Construction Used High Speed Reinforcing Mesh Welding Machine meets the demand to weld continuously wires of 12+12mm at a high speed at the moment when saving energy.
Construction Used High Speed Reinforcing Mesh Welding Machine 29 electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
