| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-16Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Mine Support Mesh Multi Point Spot Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
| Voltage: | 220V/380V/415V/440V | Key Selling Points: | Full Automatic |
| Color: | Grey& Yellow Or Can Be Customized | Automation Degree: | Full Automatic |
| High Light: | Water Cooling Multi Point Spot Welding Machine,440V Multi Point Spot Welding Machine,440V Water Cooled Spot Welder |
||

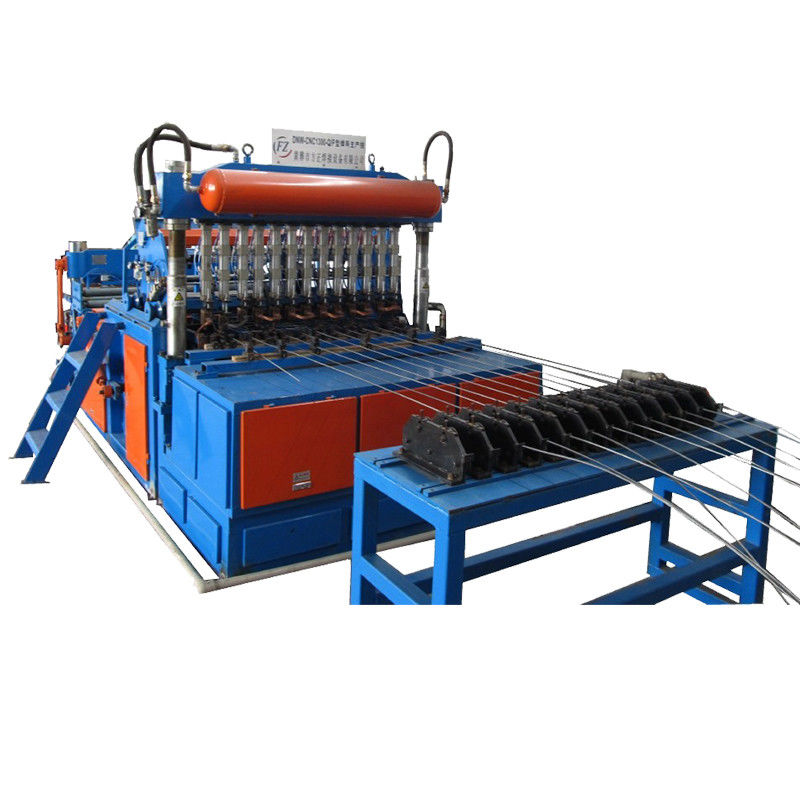

Mine Support Mesh Multi Point Spot Welding Machine
The welding distance between the welding main engine and the meridian is adjusted stepless, the structure of the designed welding transformer is enhanced, and the special forced water cooling system is configured to ensure that the long time operation does not heat up, and the welding effect is excellent.
As a whole, the Multi Point Spot Welding Machine adopts PLC programming control, humanized operation interface, easy to operate and master, mesh specification adjustment can be edited by LCD touch screen, all production data setting is convenient and fast. Operating system, CNC servo system, stable performance to meet the needs of high-speed welding mesh.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤3000mm | Adjustable |
| 9 | Width range of wire mesh | ≤1600mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
We ensure that we will continuously improve and perfect Mine Support Mesh Multi Point Spot Welding Machine appearance, quality, performance and after-sales service of the products and try our best to provide the products with good quality and after-sales service for our customers. We believe that you will think each of our Mine Support Mesh Multi Point Spot Welding Machine is worth its price after you use it.
