| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Usage: | Construction Mesh | Lead Time: | 30 Days |
|---|---|---|---|
| Welding Method: | Pneumatic | Automation Degree: | Full Automatic |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| High Light: | Pneumatic Type Roll Mesh Welding Machine,Full Automatically Roll Mesh Welding Machine,Pneumatic Automatic Wire Mesh Welding Machine |
||

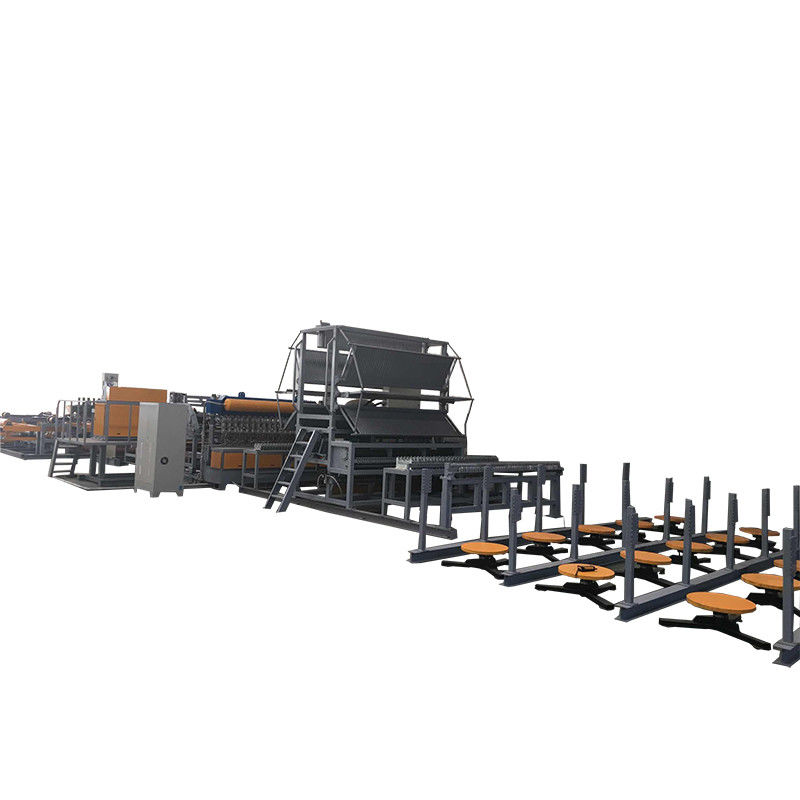

Construction Full Automatically Roll Mesh Welding Machine
The whole more wear-resistant, better electrical conductivity, longer service life, reduce production costs. The welding gas storage device is equipped with air filter device and oil stain filter device, which can greatly improve the service life of pneumatic components of the equipment. Each cylinder is welded with one solder joint and the lower pressure group discharge is welded at the same time. All electric heads of are square and can be used on all sides. The upper and lower main beams are made of thick steel plates, and the service life of the moving elements of pneumatic components can be greatly improved by non-deformation.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
Welding forming mesh, the motor of Construction Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Construction Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Construction Full Automatically Roll Mesh Welding Machine.
