Place of Origin: | CHINA |
Brand Name: | FZ |
Certification: | CE ISO |
Model Number: | DNW-20Q |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 60days |
Payment Terms: | L/C,T/T, Western Union |
Supply Ability: | 10 SETS/ MONTH |
Wire Diameter:: | 3-6mm | Max Width:: | 30000mm |
---|---|---|---|
Name:: | Fence Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
Wire Diameter: | 3-6mm | Certification: | CE,ISO9001 |
Weight: | 7t | Warranty: | 1 Year |
Color: | Gray And Yellow | Control System:: | PLC |
Rated Voltage:: | 415V/380V,50Hz/60Hz | Rated Capacity:: | 150Kva*6set |
High Light: | ISO9001 Wire Mesh Machine,Servo Stepper Wire Mesh Machine,Servo Stepper Fence Making Machine |

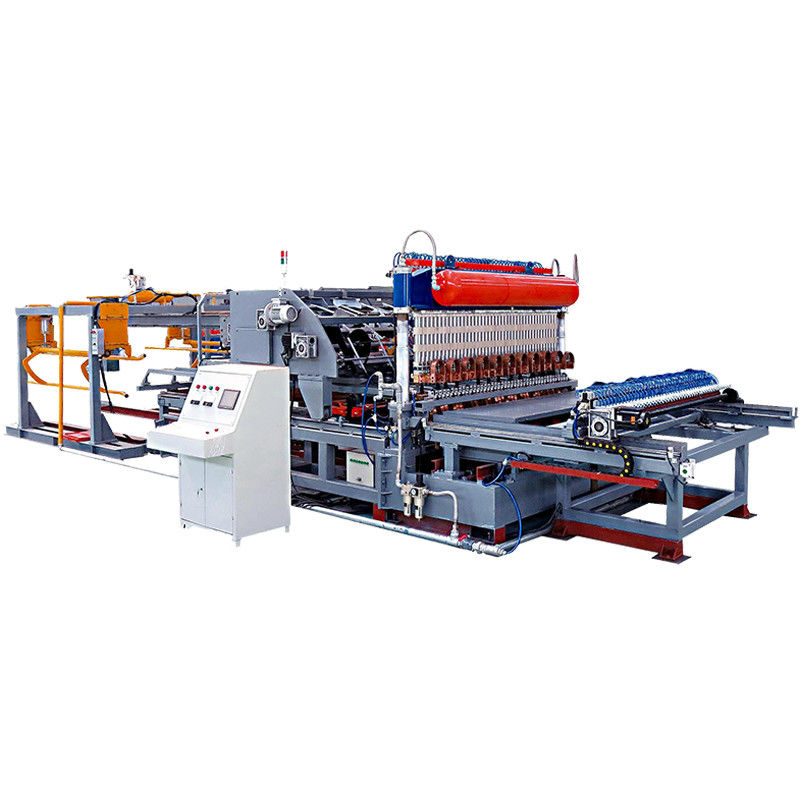

Wire Mesh Machine For Different Type SS Wire Cable Tray
the wire cable tray is made by long wire spacing 25mm both side and 50mm in the middle, we can make all these T-type welding and wave line in both two side online in one time, if you need, you can show me your drawings about your mesh.
1) Mesh traction adopts brand CNC servo system control.
2) Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
3) Using the gear and the rack drive, the transmission efficiency is perfect.
4) Traction device can work in way of back and forth, return rapid and stable.
5) Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
6) The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
Product type |
DNW-20Q |
Working speed max. |
35-55Times/Min. |
Width range of wire mesh |
≤ 2000mm |
Longitudinal wire spacing |
≧25mm variable from mm it can be adjusted |
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
Control method |
PLC programming control, servo stepper system |
Welding cylinders number |
51pcs |
Each welding transformer is controlled by a separate microcomputer. The welding electronic control adopts the way of grouped power transmission and welding. It means when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of welding joints, and avoid thermal deformation of meshes.
Contact Person: Bella
Tel: +8613283273008
