| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Wire Diameter: | 6-8mm | Welding Speed: | 40-60 Times/min |
|---|---|---|---|
| Machinery Test Report: | Provided | Key Selling Points: | Full Automatic |
| Lead Time: | 30 Days | Welding Method: | Pneumatic |
| Automation Degree: | Full Automatic | Certification: | CE ISO |
| Producton Capacity: | 50 Sets/Month | Weight: | 18 Tons |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| High Light: | 18 Tons Wire Fencing Machine,415V Wire Fencing Machine,415V Welded Wire Mesh Machine |
||

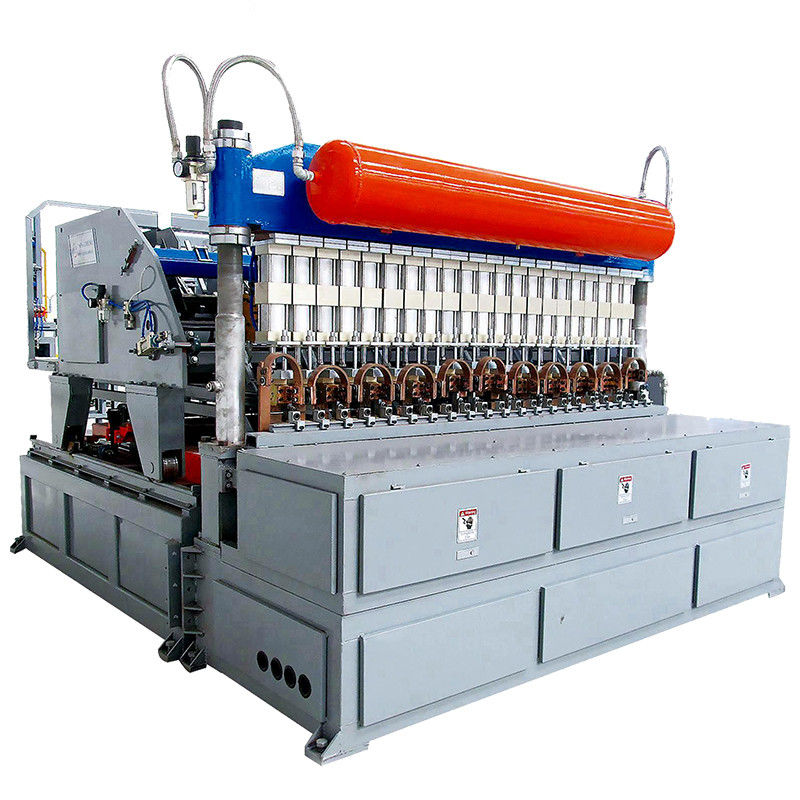

Full Automatic Fence Double Wire Mesh Welding Machine
Cross wire feeding device is important device for the Full Automatic Fence Double Wire Mesh Welding Machine.The cross wire feeding device of FZ Wire Mesh Welding Machine can produce varieties irregular mesh in high speed. For example: double wires mesh Wire Mesh Welding Machine, mesh with wires on contrary, different wires diameter and different length mesh and so on.
The line wire blanking device of Full Automatic Fence Double Wire Mesh Welding Machine have two kinds, double line wire blanking and single line wire blanking. The automatic arrangement and feeding of the pre-cut wire can be realized. This device of Full Automatic Fence Double Wire Mesh Welding Machine its whole process only requires labor put the pre-cut wire in the cross wire blanking device. A labor can look after 1-2 this model machines, to realize efficient, low-cost production. The wire mesh produced by Full Automatic Fence Double Wire Mesh Welding Machine is extremely smooth.
| Item | Name | QTY | Unit | Remark | |
| 1 | Welding machine | 1 | SET | Pneumatic | |
| 2 | Long wire auto-feeding device(2m) | R1 | 2 | SET | |
| 3 | Long wire feeding car | S1 | 1 | SET | |
| 4 | Cross wire auto-blanking device | D5 | 1 | SET | |
| 5 | Servo traction device | C10 | 1 | SET | |
| 6 | Automatically stacking device(2m) | H3 | 1 | SET | |
| 7 | Mesh transportation car | P1 | 1 | SET | |
| 8 | Automatic on line bending device | N1 | 1 | SET | |
| 9 | Welding control system | 1 | SET | ||
| 10 | Servo control system | 1 | SET | ||
| 11 | spare part case | 1 | PCS | ||
| 12 | Equipment operation and maintenance manual | 1 | COPY |
The device of Full Automatic Fence Double Wire Mesh Welding Machine is to feed the long wires. And it is also the necessary part in the Full Automatic Fence Double Wire Mesh Welding Machine .
Long wires are pre-cut. The pre-cut wires are sent into the wire plucking section fromstorage area under the drive of Full Automatic Fence Double Wire Mesh Welding Machine motor.
After inspection, wire catching plate can send wires (one piece once Time) on the position of the Full Automatic Fence Double Wire Mesh Welding Machine long wire feeding car. Then the long wire feeding car carrying the long wires go to the welding machine.This device is equipped with an inspecting device. If none of long wires drops, the device will alarm automatically. After adjusting by worker, the Full Automatic Fence Double Wire Mesh Welding Machine will continue producing, which greatly decrease the damage of equipment and meshes.
Materials area is equipped the Full Automatic Fence Double Wire Mesh Welding Machine positioning device to store the wires with different lengths.
