| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatically Bending 3-6mm Fence Wire Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | 500-2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60 Times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Automatically Bending | Automation Degree: | Full Automatic |
| High Light: | Automatically Bending Fence Mesh Machine,6mm Fence Mesh Machine,6mm Wire Mesh Making Machine |
||

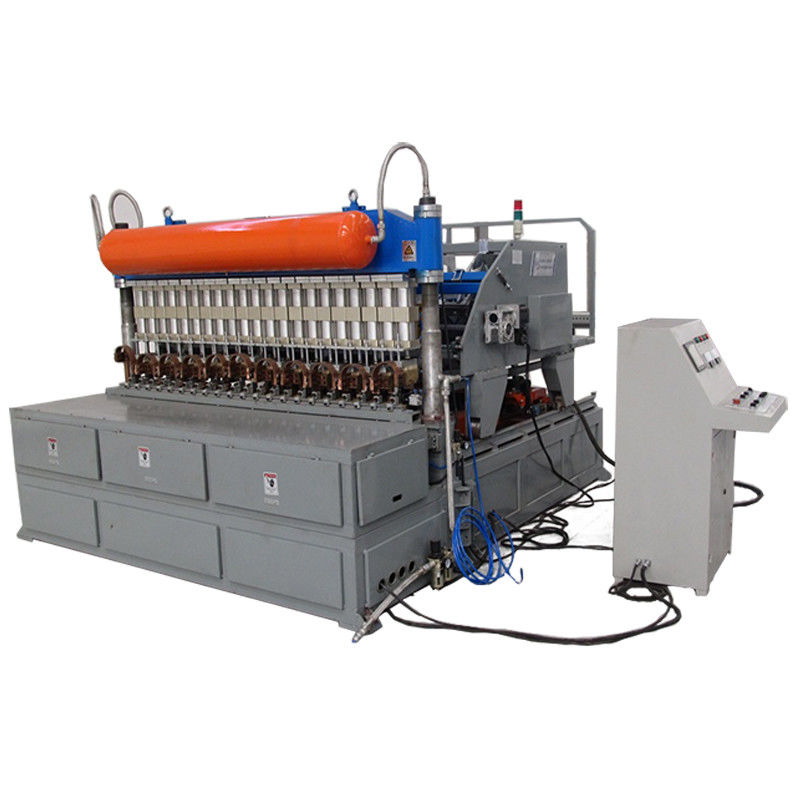

Automatically Bending 3-6mm Fence Wire Mesh Welding Machine
According to the welding principle, FZ Wire Mesh Welding Machine can be divided into pneumatic Wire Mesh Welding Machine and mechanical Wire Mesh Welding Machine. For the wire diameter more than 4mm, pneumatic Wire Mesh Welding Machine uses the cylinder to finish the welding. Mechanical drive leads the main beam under pressure to weld, that is the production process of mechanical Wire Mesh Welding Machine, it is suitable for the wire diameter below 4mm. You can choose the reasonable machine according to the welding principle of different diameter.
In order to meet the needs of your business development, reduce labor costs and improve production efficiency, our company will customize the following equipment in combination with your existing conditions and needs to meet the efficient production of wire mesh.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In pre-cut | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | 1230-1730mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 51PCS | |
| 11 | Working speed max. | 40—60times/min |
The Wire Mesh Welding Machine bending range of mesh width Is 2500mm. It can be adjusted according to Wire Mesh Welding Machine user needs.
The bending speed of wire mesh welding machine is controlled by the PLC.
Wire mesh welding machine can realize on-line bending function.
The Wire Mesh Welding Machine automatically packing device is composed of mesh turning plate, mesh dragging device and transporting orbit.
During the Wire Mesh Welding Machine welding process, the dragging hook will clamp the mesh and fastly move to the turning plate and the turning plate driven by the cylinder will drop the mesh on the transporting orbit.
When the Wire Mesh Welding Machine mesh packing to a certain height, the transporting orbit will transmit the meshes out of the position, which has the accounting function.
Wire Mesh Welding Machine working scope: mesh width 2500mm , mesh length can be adjusted automatically.
