Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-13J |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Digital Control Cnc Bird Cage Wire Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Voltage: | 220V/380V/415V/440V | Wire Diameter Range: | 2-3.5mm |
Mesh Hight: | 200-1300mm | Machinery Test Report: | Provided |
Key Selling Points: | Full Automatic | Color: | Grey& Yellow Or Can Be Customized |
Usage: | Bird Cage | Lead Time: | 30 Days |
Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
High Light: | CE Digital Control Wire Mesh Welding Machine,CNC Wire Mesh Welding Machine,CNC Wire Cage Welding Machine |

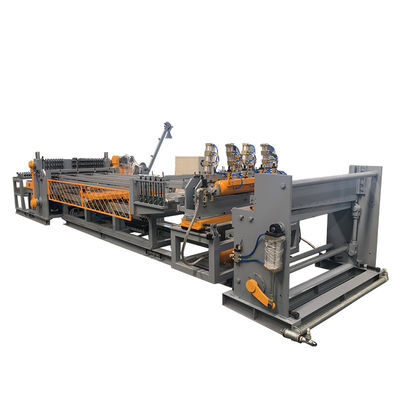

Digital Control Cnc Bird Cage Wire Mesh Welding Machine
Cross wire feeding in coil function of the Digital Control Cnc Bird Cage Wire Mesh Welding Machine. At present not only at the top level in the domestic Digital Control Cnc Bird Cage Wire Mesh Welding Machine industry, also at the leading level in the foreign Digital Control Cnc Bird Cage Wire Mesh Welding Machine industry. This function is equal that Integrate the straightener to Digital Control Cnc Bird Cage Wire Mesh Welding Machine. Wire feeding length be set on the touched screen that realized machine can produce different lengths cross wire in one mesh.
We will insist on improving our products in appearance, quality, performance, after-sale. We strive to provide customers with quality products and after-sales service, and committed to provide users with a cost-effective mesh welding equipment.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 2-3.5mm | |
2 | Long wire diameter | ¢2-3.5mm | |
3 | Cross wire diameter | ¢2-3.5mm | |
4 | Long wire feeding method | In coil | |
5 | Cross wire feeding method | In coil | |
6 | Long wire spacing | ≥50mm | Mechanically adjustment |
7 | Cross wire spacing | ≥25mm | Programming adjustments |
8 | Length range of wire mesh | 300-4000mm | Adjustable |
9 | Width range of wire mesh | 500-1300mm | Adjustable |
10 | Number of welding spot | 27PCS | |
11 | Working speed max. | 50-70times/min | |
12 | Welding method | Mechanical push down | |
13 | Control method | PLC programming control |
Digital Control Cnc Bird Cage Wire Mesh Welding Machine Long wire straightening device
There are 27PCS longitudinal wire straightening unit on Digital Control Cnc Bird Cage Wire Mesh Welding Machine Long wire straightening device, each unit has 5pcs wheels, Digital Control Cnc Bird Cage Wire Mesh Welding Machine Long wire straightening device fits for straitening wire diameter 2-3.5 mm.
Each unit of Digital Control Cnc Bird Cage Wire Mesh Welding Machine Long wire straightening device has the special structure and the distance among each wheel is calculated accurately. So Digital Control Cnc Bird Cage Wire Mesh Welding Machine Long wire straightening device can straighten different materials such as galvanizing wires, cold-rolled ribbed wires, low-carton black wires, etc.
Digital Control Cnc Bird Cage Wire Mesh Welding Machine Long wire straightening device each straightening unit adopts tungsten steel as the material; the overall is with high wear resistance.
