| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-16J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Digital Control Metal Chicken Cage Wire Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-3.5mm |
| Mesh Hight: | 200-1600mm | Mesh Hole Size: | 25*25mm |
| Welding Speed: | 70-90 Times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Full Automatic | Color: | Grey& Yellow Or Can Be Customized |
| Usage: | Chicken Cage Mesh | Lead Time: | 30 Days |
| High Light: | Digital Control Chicken Cage Welding Machine,150KVA Chicken Cage Welding Machine |
||

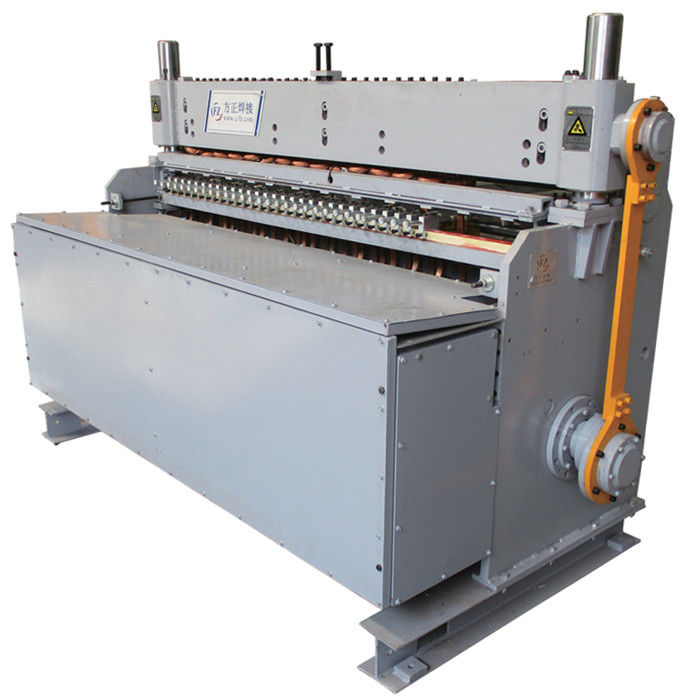

Digital Control Metal Chicken Cage Wire Mesh Welding Machine
The line wire straightening device of Digital Control Metal Chicken Cage Wire Mesh Welding Machine, according to the design of wire bearing rack. Through Digital Control Metal Chicken Cage Wire Mesh Welding Machine mesh traction device, the line wire in coil will feeding into the main welding machine. The line wire straightening device each unit has 5pcs wheels, each straightening unit adopts tungsten steel as the material; the overall is with high wear resistance. Filaments has two straightening device, 90 degree crossing, which insure the smooth of wire mesh.
Mesh produced by Digital Control Metal Chicken Cage Wire Mesh Welding Machine, Because of the thermal deformation at the time of welding can causes the mesh to arch, withal, FZ welding company designed a flatting device, special elimination of intermediate arch caused by welding thermal deformation, not only has good effect, but also does not affect the Digital Control Metal Chicken Cage Wire Mesh Welding Machine welding speed, improved the quality of wire mesh.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 150KVA | ||
| Cable specification | 120mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | Screw type |
0.6-0.8mpa Distance 3m |
| Air production | 1m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
|
Lifting distance Water pressure |
0.2-0.3mpa 25-30m Lifting |
Cross wire feeding device for Digital Control Metal Chicken Cage Wire Mesh Welding Machine
This device of Digital Control Metal Chicken Cage Wire Mesh Welding Machine will cut the coil wire into straightening long wires. Under the control of the Digital Control Metal Chicken Cage Wire Mesh Welding Machine procedure, servo motor will send the cross wire from the storage rack into the straightening device to the position between electrodes while the steel wire will be automatically straightened and cut through the rapidly rotating roller. The welding beam off Digital Control Metal Chicken Cage Wire Mesh Welding Machine will push down to finished the welding process, recycling with this until one piece of mesh is finished；the wire feeding is smooth, rapid and accurate.
