| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Full Automatic Construction Wire Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | 500-2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60 Times/min | Machinery Test Report: | Provided |
| Key Selling Points: | Full Automatic | Color: | Grey& Yellow Or Can Be Customized |
| Usage: | Construction Mesh | Lead Time: | 30 Days |
| Mesh Length: | ≤6000mm | Welding Method: | Pneumatic |
| Automation Degree: | Full Automatic | Certification: | CE ISO |
| Producton Capacity: | 50 Sets/Month | Weight: | 18 Tons |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Dimensions: | 30000*4000*3000mm | ||
| High Light: | 50x50mm Panel Welding Machine,50x50mm Mesh Panel Welding Machine,6000mm Mesh Panel Welding Machine |
||

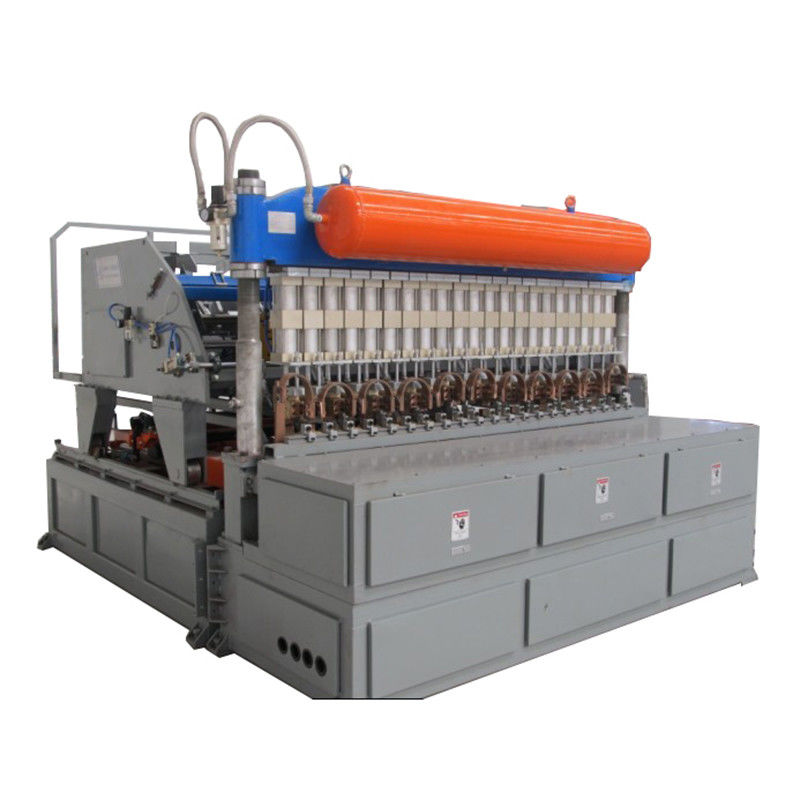

Automatic 2D Fence Panel Wire Mesh Welding Machine
FZ welding company participate in the compilation of Automatic 2D Fence Panel Wire Mesh Welding Machine industry standards, put forward valuable opinions on the mechanism, data and other aspects of Automatic 2D Fence Panel Wire Mesh Welding Machine and have been adopted. The proposals made by FZ welding company have been summed up after years of experience in making Automatic 2D Fence Panel Wire Mesh Welding Machine , play a guiding role in the development of the industry. FZ welding company has been working on the mechanism and principle of Automatic 2D Fence Panel Wire Mesh Welding Machine to build a first-class welding machine.
Water cooling system is necessary to ensure Automatic 2D Fence Panel Wire Mesh Welding Machine continuous operation. The design for Automatic 2D Fence Panel Wire Mesh Welding Machine water cooling system: not only in transformer, but also in upper and down electrodes, that can makes sure the machine 7*24 hours working without stop, Improve the stability of Automatic 2D Fence Panel Wire Mesh Welding Machine operation.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 |
Pneumatic component |
STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 |
Welding electrode |
Chromium zirconium bronze | |
| 7 | Switch and button |
SCHNEIDER |
|
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU |
Automatic 2D Fence Panel Wire Mesh Welding Machine automatic on line bending device
The bending range of mesh width Is 2500mm. It can be adjusted according to Automatic 2D Fence Panel Wire Mesh Welding Machine user needs.
The bending speed of mesh is controlled by the Automatic 2D Fence Panel Wire Mesh Welding Machine PLC.
Automatic 2D Fence Panel Wire Mesh Welding Machine can realize on-line bending function.
Long wires are pre-cut. The pre-cut wires are sent into the Automatic 2D Fence Panel Wire Mesh Welding Machine wire plucking section fromstorage area under the drive of motor. After inspection, Automatic 2D Fence Panel Wire Mesh Welding Machine wire catching plate can send wires (one piece once Time) on the position of the long wire feeding car. Then the Automatic 2D Fence Panel Wire Mesh Welding Machine long wire feeding car carrying the long wires go to the welding machine.
This device is equipped with an inspecting device. If none of long wires drops, the device will alarm automatically. After adjusting by Automatic 2D Fence Panel Wire Mesh Welding Machine worker, the machine will continue producing, which greatly decrease the damage of Automatic 2D Fence Panel Wire Mesh Welding Machine and meshes.
Materials area is equipped the positioning device to store the wires with different lengths.
