| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-16J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Digital Control Bird Cages Wire Mesh Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Mesh Hight: | 200-1600mm |
| Mesh Hole Size: | 15*15mm | Welding Speed: | 50-70 Times/min |
| Machinery Test Report: | Provided | Color: | Can Be Customized |
| Usage: | Bird Cage Mesh | Lead Time: | 15 Days |
| High Light: | Bird Cage Wire Mesh Welding Machine,Customized Wire Mesh Welding Machine,Digital Control Mesh Welding Machine |
||

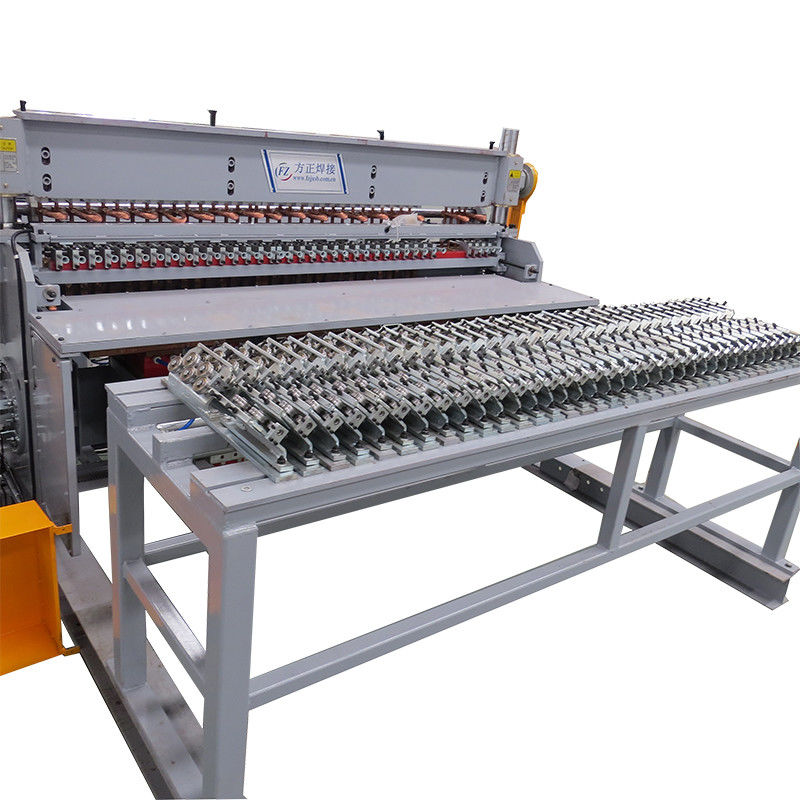

Digital Control Bird Cages Wire Mesh Welding Machine
Digital Control Bird Cages Wire Mesh Welding Machine production process
1. High-precision plasma cutting and feeding
2. Shot blasting, rust removal and processing
3. Digital Control Bird Cages Wire Mesh Welding Machine frame welding
4. Primer painting Digital Control Bird Cages Wire Mesh Welding Machine
5. Finishing coat
6. Boring machine processing
7. CNC machining center
8. Lathe Machine
9. Equipment assembly
10. Installation and testing of electrical appliance
11. Adjustment and training of Digital Control Bird Cages Wire Mesh Welding Machine
12. Customer acceptance
FZ brand Digital Control Bird Cages Wire Mesh Welding Machine has applied for 20 patents, and the customers highly regard Digital Control Bird Cages Wire Mesh Welding Machine because of its high-speed, high-efficiency and automation. Most of customers focused on the after-sales service before they place an order to any Digital Control Bird Cages Wire Mesh Welding Machine supplier, but we always deliver a satisfactory answer after they choose us. We have really after-sales service advantage in several countries, such as Turkey, Algeria, Russia, India, Morocco, Thailand, Saudi Arabia, etc. That is the reason why our old customers come to order new machine from us.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 150KVA | ||
| Cable specification | 120mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | Screw type |
0.6-0.8mpa Distance 3m |
| Air production | 1m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
|
Lifting distance Water pressure |
0.2-0.3mpa 25-30m Lifting |
Cross wire feeding device for Digital Control Bird Cages Wire Mesh Welding Machine
This device of Digital Control Bird Cages Wire Mesh Welding Machine will cut the coil wire into straightening long wires. Under the control of the Digital Control Bird Cages Wire Mesh Welding Machine procedure, servo motor will send the cross wire from the storage rack into the straightening device to the position between electrodes while the steel wire will be automatically straightened and cut through the rapidly rotating roller. The welding beam off Digital Control Bird Cages Wire Mesh Welding Machine will push down to finished the welding process, recycling with this until one piece of mesh is finished；the wire feeding is smooth, rapid and accurate.
