| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Key Selling Points: | Multi Point | Color: | Can Be Customized |
| Usage: | Reinforcing Mesh | Lead Time: | 30 Days |
| Welding Method: | Pneumatic | Automation Degree: | Automatic |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| High Light: | 10 Kva Heavy Duty Spot Welder,Multi Point Heavy Duty Spot Welder,Multi Point 10 Kva Spot Welding Machine |
||

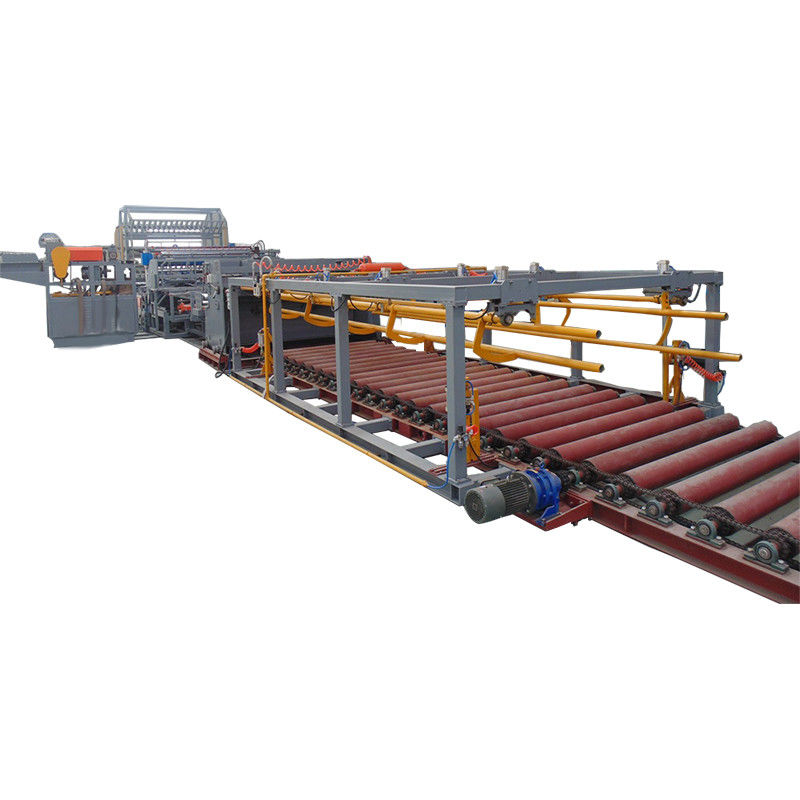

Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine
When you change the specifications of the mesh, Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine is very easy to adjust. The long wire of Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine only need to change the distance of straightening device, the distance of cylinder, the distance of nether electrode holder and magnet positioning device. The cross wire of Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine only need enter different data in the PLC, it is controlled by microcomputer. Mesh traction device only need change the traction distance, some like the cross wire. When finish all of the adjust, Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine can welding a new specification mesh.
After the Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine assurance period, during the service life of the equipment,we supply after-sale service with good quality.
We guarantee a lifelong maintenance and supply spare parts and easily damaged parts of Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine.
We will arrange engineer to the factory to supply technical service as soon as we receive formal notification such as fax or email if customer can not solve the Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine problem under the guidance on the phone.
Provide regular Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine inspection and maintenance service.
Update the Reinforcing Building Rolling Mesh Multi Point Spot Welding Machine new Software edition for free.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 | Pneumatic component | STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 | Welding electrode | Chromium zirconium bronze | |
| 7 | Switch and button | SCHNEIDER | |
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU |
1. The ambient air temperature is about 5 ~ 40 ℃;
2. Air relative humidity: 20 ° C Max. 90%, 40 ℃ Max. 50%;
3. The elevation should be lower than 2000 meters;
4. The device must be away from the large vibration equipment;
5. The dust, acid, corrosive gases or substances in the air around the workshop do not exceed normal levels;
6. No outdoor use, it must be used inside the plant, and have specialized personnel to guard the door;
7. Away from the place of the strong magnetic field;
8. Power: AC(380V 50HZ), we suggest adopting a separate transformers of 10-600KVA with a distance less than 50m and the cable should adopt the copper wire of 120 mm²;
9. Water: Provide clean and neutral circulating cooling water, inlet temperature in Summer is not greater than 40 ° C (the referring volume of cooling water is no less than 2 cubic meters), 0.2 ≤ pressure ≤ 0.3MPa
10. Gas: screw rod air compressor with a providing pressure ≥ 0.8MPa and a gas production volume ≥ 3.4m³/min; the air tank with a pressure ≥0.8MPa and a volume≥2m3/min. We suggest you to use the matching air dryer.
11. 4-8mm wire straightening and cutting machine and cold rolled deformed equipment.
