| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-13Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Galvanized Steel Cable Tray Wire Mesh Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | 1300mm | Mesh Hole Size: | 50*100mm |
| Welding Speed: | 40-60times/min | Machinery Test Report: | Provided |
| Key Selling Points: | Cable Tray Mesh | Color: | Can Be Customized |
| High Light: | 3Phase Electric Wire Welding Machine,440V Electric Wire Welding Machine,440V 3 Phase Welding Machine |
||

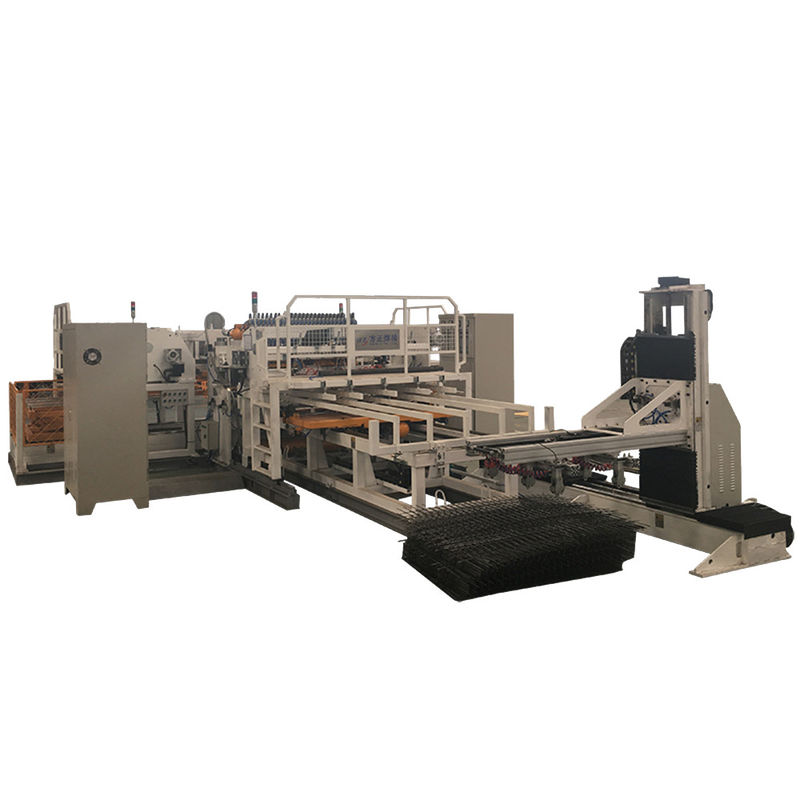

Galvanized Steel Cable Tray Wire Mesh Welding Machine
The welding gas storage device is equipped with air filter device and oil stain filter device, which can greatly improve the service life of pneumatic components of the equipment.
Each cylinder is welded with one solder joint and the lower pressure group discharge is welded at the same time. All electric heads are square and can be used on all sides. The upper and lower main beams are made of thicker steel plates, firmly and without deformation.
The welding distance of the meridian is adjusted stepless, the structure of the designed welding transformer is enhanced, and the special forced water cooling system is configured to ensure that the long time operation does not heat up, and the welding effect is excellent.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Galvanized Steel Cable Tray Wire Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Galvanized Steel Cable Tray Wire Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Galvanized Steel Cable Tray Wire Mesh Welding Machine meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
For Sale Galvanized Steel Cable Tray Wire Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
