| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets/month |
| Warranty: | 1 Year | Wire Diameter: | 3-6mm |
|---|---|---|---|
| Welding Speed: | 50-70times/min | Usage: | Product Fence For Protect Highway And Railway |
| Rated Capacity: | 160KVA*9 | Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine |
| Mesh Width: | Max 3300mm | Control System: | PLC+Touch Screen |
| Cross Wire Space: | 50-200mm Be Adjustable | Voltage: | 380V/50HZ Or Your Need |
| Highlight: | 380V Reinforcment Mesh Welding Machine,50HZ Reinforcment Mesh Welding Machine,50HZ Weld Mesh Making Machine |
||

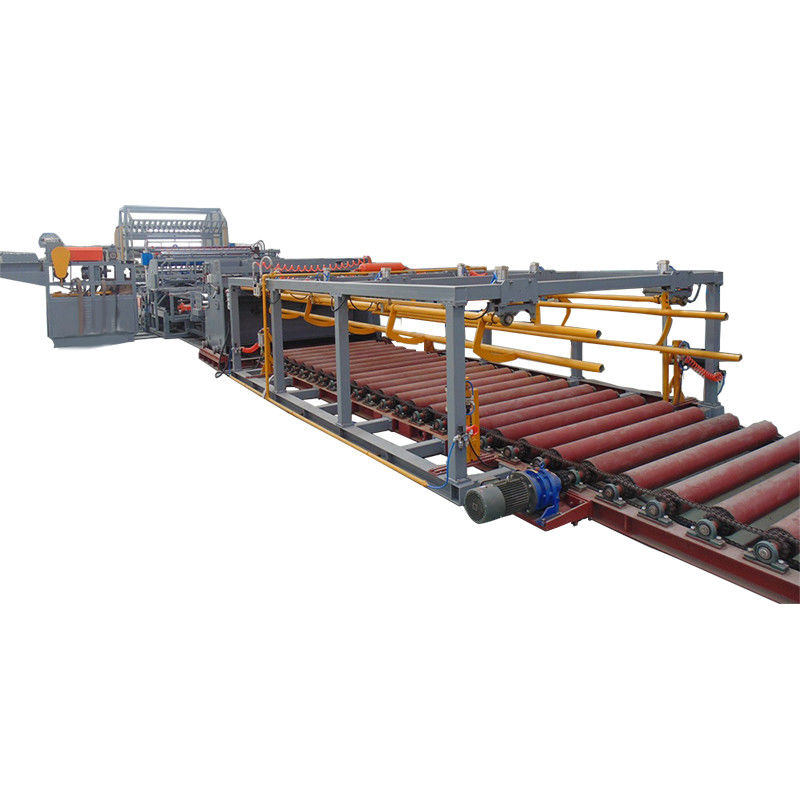

Reinforcment Mesh Welding Machine For Wire Diameter 8-12mm
In order to make machine playing a better performance, we must pay more attention to the following requirements for site selection and equipment layout.
1. The ambient air temperature is about 5 ~ 40 ℃;
2. Air relative humidity: 20 ° C Max. 90%, 40 ℃ Max. 50%;
3. The elevation should be lower than 2000 meters;
4. The device must be away from the large vibration equipment;
5. The dust, acid, corrosive gases or substances in the air around the workshop do not exceed normal levels;
6. No outdoor use, it must be used inside the plant, and have specialized personnel to guard the door;
| Product type | DNW-33 Full-auto Type |
| Working speed max. | 60-80s/Min. |
| Width range of wire mesh | ≤ 3300 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 6-12mm |
| Max. welding capacity | 12+12mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
Water: Provide clean and neutral circulating cooling water, inlet temperature in Summer is not greater than 40 ° C (the referring volume of cooling water is no less than 2 cubic meters), 0.2 ≤ pressure ≤ 0.3MPa
