| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-20Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C,T/T, Western Union |
| Supply Ability: | 10 sets /month |
| Wire Diameter:: | 2-4mm | Max Width:: | 2000mm |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Wire Diameter: | 3-6mm |
| Certification: | CE,ISO9001 | Weight: | 7t |
| Warranty: | 1 Year | Color: | Gray And Yellow |
| Control System:: | PLC | Rated Voltage:: | 415V/380V,50Hz/60Hz |
| High Light: | Servo Control Wire Mesh Welding Machine,7t Wire Mesh Welding Machine |
||
Pet Cage And Easy To Adjustable Wire Mesh Welding Machine

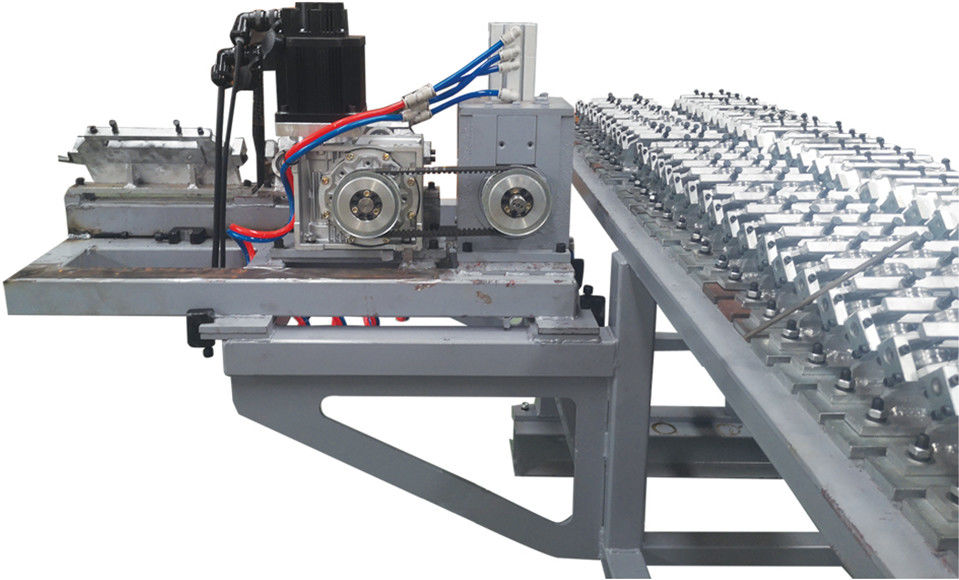

1) Mesh traction adopts brand CNC servo system control.
2) Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
3) Using the gear and the rack drive, the transmission efficiency is perfect.
4) Traction device can work in way of back and forth, return rapid and stable.
5) Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
6) The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
The whole equipment adopts PLC programming control, user-friendly operation interface, easy to operate and master, mesh size adjustment can be edited through LCD touch screen, all production data setting is convenient and fast. Operating system, CNC servo system, stable performance, meet the needs of high-speed welding mesh.
The operation platform has two selection modes: manual and automatic.
The parameters of the servo net drawing system can be set and stored in PLC without losing when power is off.
|
Product type |
DNW-20Q |
|
Working speed max. |
60-90Times/Min. |
|
Width range of wire mesh |
≤ 2000mm |
|
Longitudinal wire spacing |
≧20mm variable from mm it can be adjusted |
|
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
Control method |
PLC programming control, servo stepper system |
|
Welding cylinders number |
51pcs |
Contact Person: Bella
Tel: +8613283273008
