| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Road Construction 3-6mm Roll Reinforcing Mesh Welding Machine | Machinery Test Report: | Provided |
|---|---|---|---|
| Key Selling Points: | 3-6mm | Color: | Customized |
| Usage: | Road Construction | Lead Time: | 25 Days |
| Welding Method: | Pneumatic | Automation Degree: | Automatic |
| Voltage: | 220V/380V/415V/440V | Producton Capacity: | 50 Sets/Month |
| Highlight: | 6mm Reinforcing Mesh Welding Machine,Straightening Units Reinforcing Mesh Welding Machine,Straightening Units Fence Mesh Welding Machine |
||

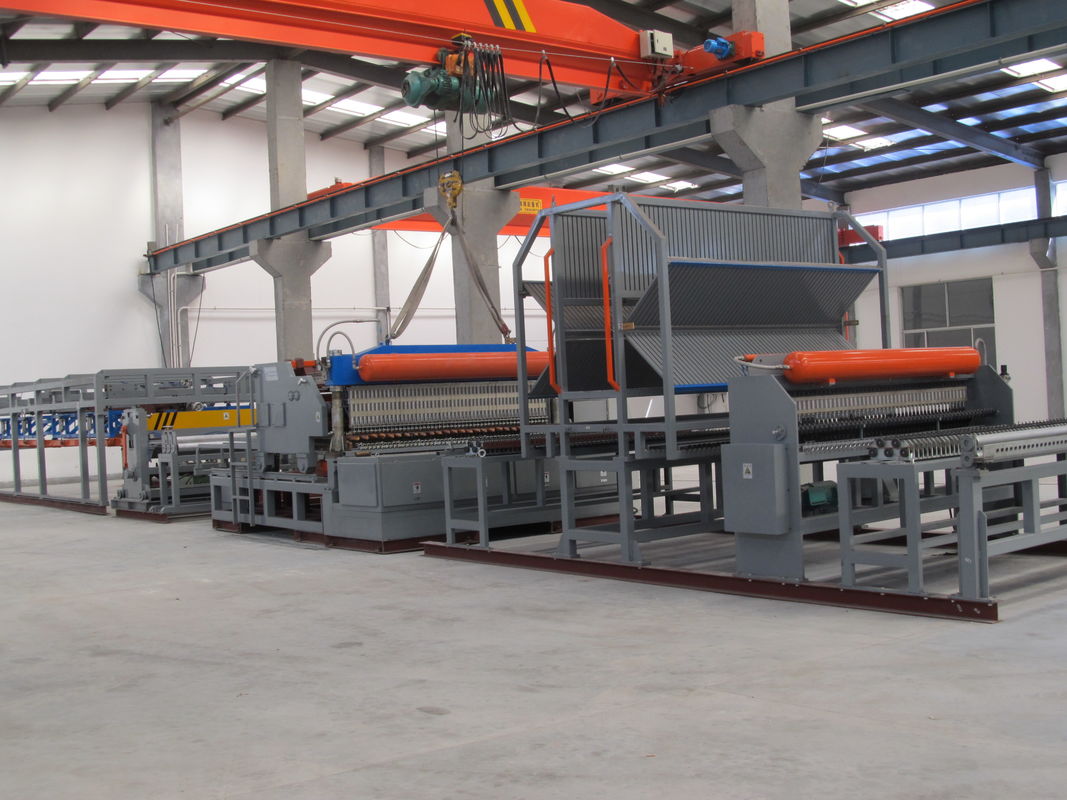

Road Construction 3-6mm Roll Reinforcing Mesh Welding Machine
Several wire straightening units, each with 7 straightening wheels, are suitable for straightening steel wires of different diameters. Each wire uses 2 units, 14 straightening wheels adjusted for a 90 ° crossing.
Unique straightening mechanism, each straight wheel material of alloy steel and heat treatment and surface through anti-corrosion treatment, overall wear resistance and corrosion prevention, adapted to straightening low-carbon cold pull wire, cold rolled ribs, galvanized wire, etc.
Different diameter wires can be well straightened, only need to adjust the spacing between the upper and lower two groups of straight wheels.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 | Pneumatic component | STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 | Welding electrode | Chromium zirconium bronze | |
| 7 | Switch and button | SCHNEIDER | |
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU |
1. The automatically packing device is composed of mesh turning plate, mesh dragging device and transporting orbit.
2. During the welding process, the dragging hook will clamp the mesh and fastly move to the turning plate and the turning plate driven by the cylinder will drop the mesh on the transporting orbit.
3. When the mesh packing to a certain height, the transporting orbit will transmit the meshes out of the position, which has the accounting function.
4. Working scope: mesh width 2500mm , mesh length can be adjusted automatically.
