| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Usage: | Construction Mesh | Lead Time: | 20 Days |
|---|---|---|---|
| Welding Method: | Pneumatic | Automation Degree: | Automatic |
| Certification: | CE ISO | Producton Capacity: | 30 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Highlight: | Electric CE Roll Mesh Welding Machine,380V Roll Mesh Welding Machine,380V Electric Welding Machine |
||

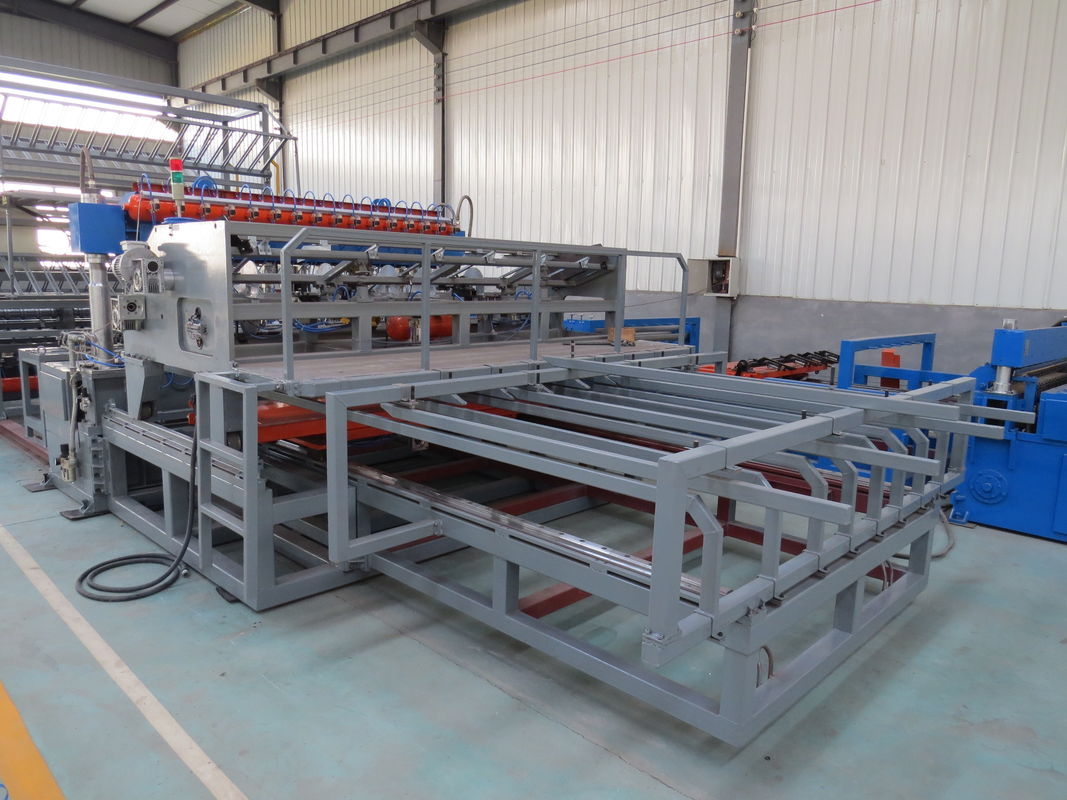

High Speed Electric Wire Roll Mesh Welding Machine
Thank you for choosing the DNW-QN automatic pneumatic mesh welding machine produced by our company. I hope you will read all the contents of the product instructions carefully before use, and operate and use them correctly according to the guidance of this instruction, which is very important for you to successfully use the welding mesh machine to create good economic benefits. In the preparation of this manual, we are very serious and rigorous, I hope to provide you with complete and reliable information. The contents of the product instructions refer to the relevant legal and industry benchmarks. When you use our products, if you have any questions about the safety precautions provided by this service, please consult us.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
Welding forming mesh, the motor of Construction Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Construction Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Construction Full Automatically Roll Mesh Welding Machine.
