8 + 6 + 8mm Double Wire Fence Panel 380v Wire Mesh Welding Machine

8 + 6 + 8mm Double Wire Fence Panel 380v Wire Mesh Welding Machine

  • 8 + 6 + 8mm Double Wire Fence Panel 380v Wire Mesh Welding Machine
8 + 6 + 8mm Double Wire Fence Panel 380v Wire Mesh Welding Machine
Product Details:
Place of Origin: China
Brand Name: FZ
Certification: CE
Model Number: DNW-25Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic films or can be customized.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Type: 8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine Material Of Machine: Heavy Plates And Section Bars
Wire Diameter Range: 8+6+8mm Mesh Hight: 500-2500mm
Mesh Hole Size: 250*100mm Welding Speed: 40-60 Times/min
Usage: Fence Mesh Welding Method: Pneumatic
Producton Capacity: 30 Sets/Month Weight: 20 Tons
Voltage: 220V/380V/415V/440V Control System: PLC
Cooling Method: Water Cooling Warranty: 1 Year
Highlight:

380v wire mesh welding machine

,

plc wire mesh welding machine

,

380v mesh welding machine

8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine



Optional equipment:
Straight cut-off machine, air compressor, gas storage tank, cold dryer, air source purification equipment.
Noise:
The noise of the machine is less than 80 decibels, usually at 70 decibels, the main part of the noise is the welding transformer produced during welding.
Application field of machines:
The machine is mainly used for welding building mesh and road and bridge construction.



Item Name QTY Unit
1 Welding machine 1 SET
2 Welding Control System 1 SET
3 Servo Control System 1 SET
4 Servo stepping device 1 SET
5 Cross Wire Auto-Feeding System 1 SET
6 Long wire loading frame 1 SET
7 Mesh traction platform 1 SET
8 Long wire feeding car device 1 SET
9 Automatically stacking device 1 SET
10 Mesh transportation car 1 SET
11 spare part case 1 PCS
12 Equipment operation and maintenance manual 1 COPY



8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine long wire feeding car



1. Manually put the pre-cut long wire into the position hole of 8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine, start the 8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine button and the pneumatic clamp will clamp the wire tightly, then the stepping motor will drive the wire to be welded by the 8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine welding host. Later the 8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine mesh traction car will pulling the mesh by going there and back. When welding the second mesh, the feeding car will back to the original point and still for preparing the wires of the second mesh. As soon as the first mesh is finished, it will work again and followed by recycling. There is no need to stop the welding machine, which improves the welding efficiency.



2. The whole set of 8 + 6 + 8mm Double Wire Fence Panel Wire Mesh Welding Machine is composed of machine rack, feeding car, clamping device and transmission device.

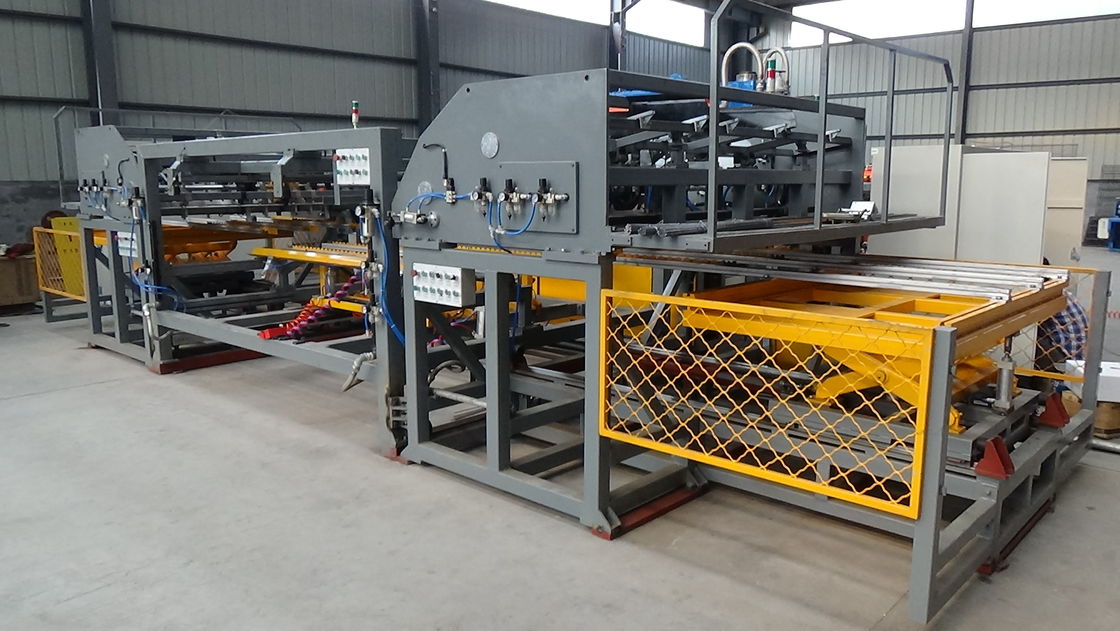

8 + 6 + 8mm Double Wire Fence Panel 380v Wire Mesh Welding Machine 0
