| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | 2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine | Voltage: | 220V/380V/415V/440V Or Can Be Customized |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-4mm |
| Mesh Hight: | 500-1300mm | Mesh Hole Size: | 50*50mm |
| Key Selling Points: | Fully Automatic | Usage: | Wire Shelf |
| Lead Time: | 25 Days | Welding Method: | Mechanical Push Down |
| Highlight: | 4mm mesh welding machine,220v mesh welding machine,2mm wire mesh welding machine |
||

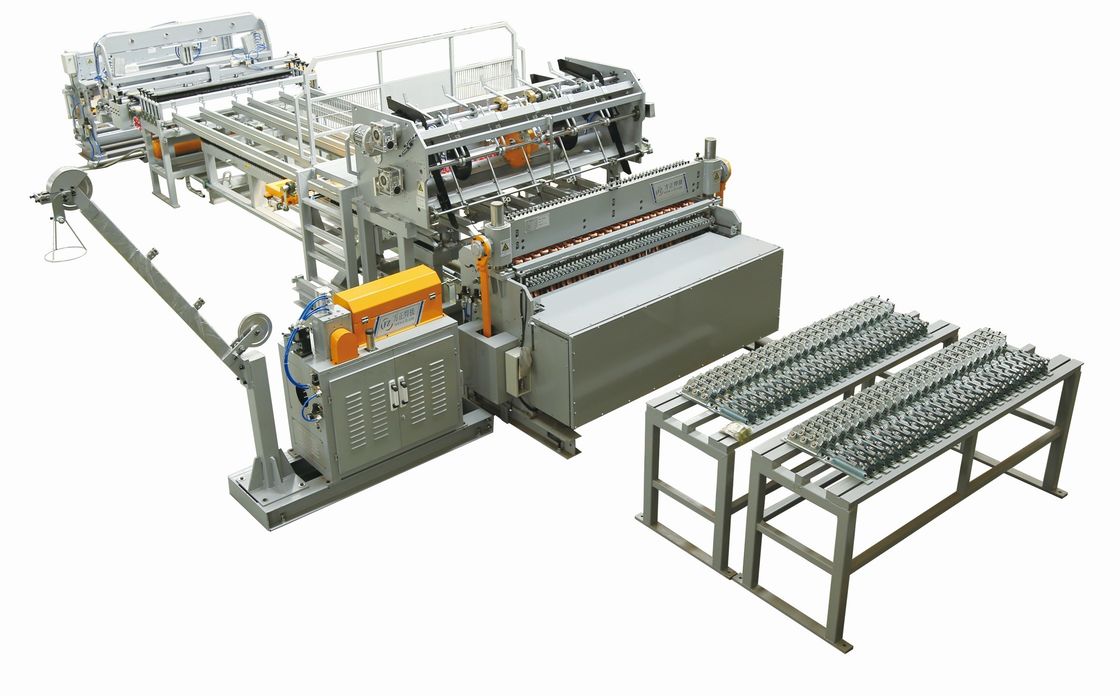

2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine
Adjustment of upper electrode: Check welding surface of upper electrode for serious wear and if worn, remove repair.
Adjustment of electrode block spacing; according to the wire spacing and the lower electrode block, loosen the fastening screw of the upper electrode cylinder to be adjusted, move to the appropriate position, and rotate the fastening screw.Adjust the pressure of the upper electrode cylinder according to the welding wire.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 150KVA | ||
| Cable specification | 120mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | Screw type |
0.6-0.8mpa Distance 3m |
| Air production | 1m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
The overhangs of meshes cut by this device of 2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine are very short, which can save material cost for you.
1) The length of the steel mesh can be arbitrarily settled by editing the 2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine production parameters to meet different needs.
2) The cutting range of mesh width Is 1300mm. It can be adjusted according to 2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine user needs.
3) The 2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine cutting speed of mesh is controlled by the PLC
4) 2-4mm Fully Automatic Wire Shelf Wire Mesh Welding Machine adopts pneumatic cutting with big pressure, which can easily cut 27 pcs wires with diameter 2-4mm.
