Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-13Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Double Wires, Reverse Wire Can Be Welded Goods Rack Layer Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
---|---|---|---|
Wire Diameter Range: | 6+6mm | Mesh Hight: | 500-1300mm |
Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
Usage: | Goods Rack Layer Mesh | Welding Method: | Pneumatic |
Producton Capacity: | 100 Sets/Month | Weight: | 10 Tons |
Voltage: | 220V/380V/415V/440V | Control System: | PLC Control |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Highlight: | 440v automatic wire mesh welding machine,pneumatic automatic wire mesh welding machine,440v reverse wire mesh welding machine |

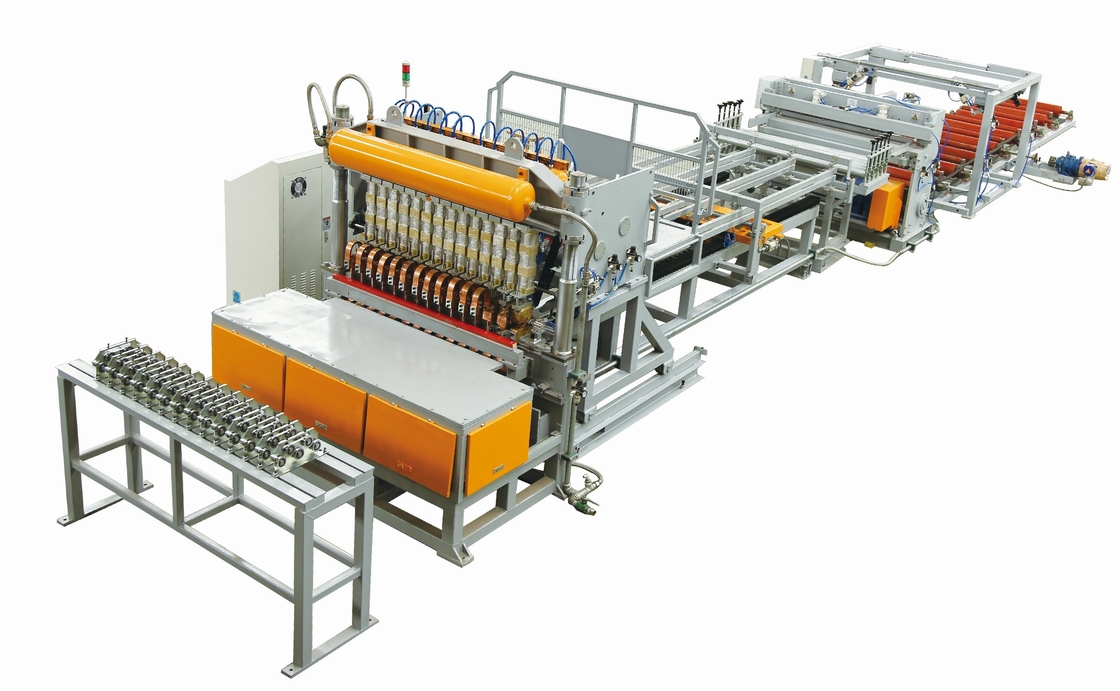

Double Wires, Reverse Wire Can Be Welded Goods Rack Layer Mesh Welding Machine
(1) At the same time as the machine is installed, the equipment required for power lines, control lines and waterways is ready.
(2) The machine needs AC 380V three-phase power supply, allowing voltage fluctuation of +10%-10%. Voltage beyond the above range may cause the equipment to not work properly or damage.
(3) The cable introduced into the electric cabinet should be arranged neatly, numbered clearly, avoid crossing, and should be fixed firmly, so that the connected terminal row should not be subjected to mechanical stress; the sheathed cable should cut off the steel strip after entering the control panel and control cabinet, the end of the cut off should be fastened and the steel strip should be grounded; the core wire of rubber insulation should be protected by jacket insulation pipe.
(4) After the installation of the cable pipe, should do a good plugging, may be frozen in the area should also prevent water in the pipe icing measures.
(5) Electronic control cabinet, welding main engine, servo motor, water pump should be reliably grounded.
(6) Connect each part of the electrical components according to the electrical circuit diagram, and strictly check to ensure the circuit safety.
Item | Name | QTY | Unit |
1 | Welding machine | 1 | SET |
2 | Welding Control System | 1 | SET |
3 | Servo Control System | 1 | SET |
4 | Servo stepping device | 1 | SET |
5 | Cross Wire Auto-Feeding System | 1 | SET |
6 | Long wire loading frame | 1 | SET |
7 | Mesh traction platform | 1 | SET |
8 | Long wire feeding car device | 1 | SET |
9 | Automatically stacking device | 1 | SET |
10 | Mesh transportation car | 1 | SET |
11 | spare part case | 1 | PCS |
12 | Equipment operation and maintenance manual | 1 | COPY |
Double Wires, Reverse Wire Can Be Welded Goods Rack Layer Mesh Welding Machine
Unpack all packing. (Protective measures taken before transport to avoid damage caused by vibration in transit)
Ensure that the work site is free of flammable, explosive and other dangerous goods.
Check if the machine connection is fastened, the installation is in place, and the lubricating part shall be lubricated.
Check the machine gas system, no damage and other phenomena. (including air compressor, gas storage tank, filter, cylinder, joint, solenoid valve, muffler, air hose)
Check the machine waterway system, no impurities, damage and other phenomena. (including water, water pipes, joints, ball valves)
Power cord, ground wire, test whether the main power supply is correct, to ensure that the three-phase electricity is correct.
Boot attention, must ensure that the machine required media, gas, water supply is fully equipped.
After strictly checking the circuit connection and insulation, the power on trial operation, if there is any abnormal, immediately power off, find the cause. During trial operation, the personnel should be away from the movable part of the machine.
