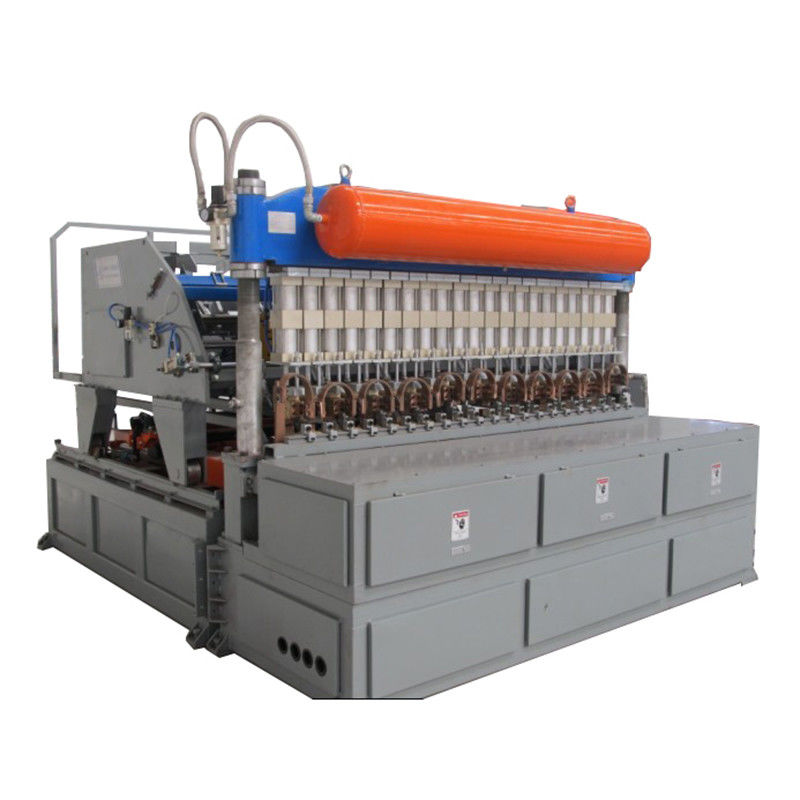

Fence 2.5m Width Servo Wire Mesh Welder Bending Full Auto

Fence 2.5m Width Servo Wire Mesh Welder Bending Full Auto

  • Fence 2.5m Width Servo Wire Mesh Welder Bending Full Auto
Fence 2.5m Width Servo Wire Mesh Welder Bending Full Auto
Product Details:
Place of Origin: CHINA
Brand Name: FZ
Certification: CE ISO
Model Number: DNW-25QB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Delivery Time: 50days
Payment Terms: L/C,T/T, Western Union
Contact Now
Detailed Product Description
Wire Diameter:: 3-6mm Max Width:: 2500mm
Name:: Fence Making Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service
Wire Diameter: 3.5-6mm Certification: CE,ISO9001
Weight: 9t Warranty: 1 Year
Color: Gray And Yellow Control System:: PLC + Servo
Rated Voltage:: 415V/380V,50Hz/60Hz Rated Capacity:: 150Kva*9set
Highlight:

2.5m width wire mesh welder

,

servo wire mesh welder

,

servo automatic wire mesh welding machine

Fence Wire Mesh Welding Machine With Bending Full-Auto



the long wire and cross wire all can be coil feeding in,then that will save stuaff to operation the machine. we only need one to make all these work to change the wire coil when there no wire and push the button in screen,



1) Mesh traction adopts brand CNC servo system control.
2) Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
3) Using the gear and the rack drive, the transmission efficiency is perfect.
4) Traction device can work in way of back and forth, return rapid and stable.
5) Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
6) The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.



Product type

DNW-20Q

Working speed max.

40-60times/min

Width range of wire mesh

≤ 2500mm

Longitudinal wire spacing

≧50mmvariable from mm it can be adjusted

Welding wire material

Unalloyed steel wire

Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture

Control method

PLC programming control, servo stepper system

Welding cylinders number

51pcs



It means when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of welding joints, and avoid thermal deformation of meshes.





Fence 2.5m Width Servo Wire Mesh Welder Bending Full Auto 0
