| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Fully Automatic Supermarket Racking Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
|---|---|---|---|
| Wire Diameter Range: | 6+6mm | Mesh Hight: | ≤1300mm |
| Mesh Hole Size: | 50*25mm | Welding Speed: | 40-60 Times/min |
| Usage: | Wire Shelf | Welding Method: | Pneumatic |
| Producton Capacity: | 50 Sets/Month | Weight: | 15 Tons |
| Voltage: | 220V/380V/415V/440V Or Can Be Customized | Control System: | PLC Control |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| High Light: | 1300mm automatic welded wire mesh machine,racking automatic welded wire mesh machine,supermarket racking wire mesh welder |
||

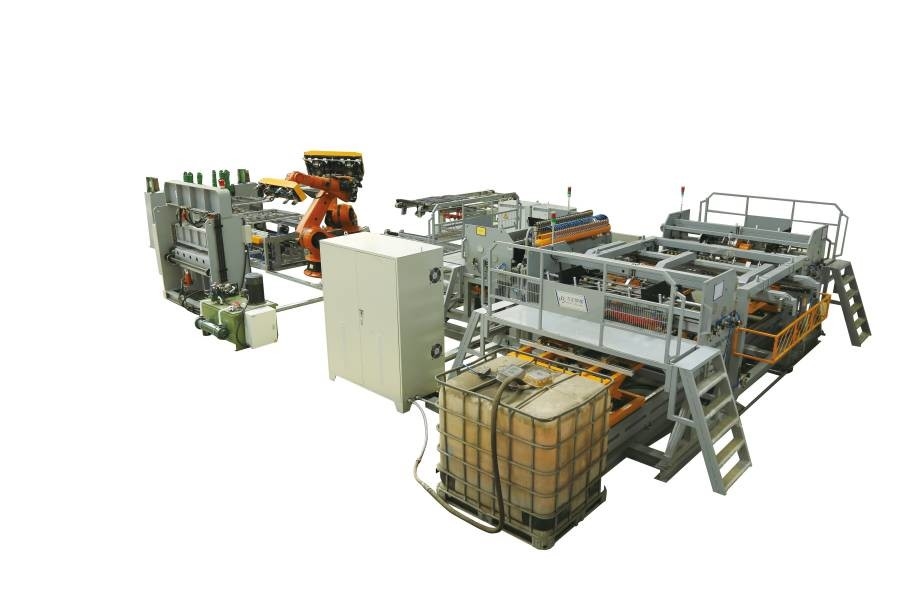

Fully Automatic Supermarket Racking Wire Mesh Welding Machine
In order to adapt to the capacity of the user's main power transformer and reduce the current impact, the welding power electronic control adopts a welding separate control power transmission method, that is, the welding transformer works separately when welding the same row of latitude filaments.
The welding power electronic control system adopts synchronous control technology. The welding time and separate control welding are controlled by a single-chip machine, with high control accuracy and stable performance.
| Item | Name | QTY | Unit |
| 1 | Welding machine | 1 | SET |
| 2 | Welding Control System | 1 | SET |
| 3 | Servo Control System | 1 | SET |
| 4 | Servo stepping device | 1 | SET |
| 5 | Cross Wire Auto-Feeding System | 1 | SET |
| 6 | Long wire loading frame | 1 | SET |
| 7 | Mesh traction platform | 1 | SET |
| 8 | Long wire feeding car device | 1 | SET |
| 9 | Automatically stacking device | 1 | SET |
| 10 | Mesh transportation car | 1 | SET |
| 11 | spare part case | 1 | PCS |
| 12 | Equipment operation and maintenance manual | 1 | COPY |
Fully Automatic Supermarket Racking Wire Mesh Welding Machine
If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Gas supply equipment or water pump should also do corresponding maintenance.
Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.
