Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-16Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | High Precision Displaying Rack Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
---|---|---|---|
Wire Diameter Range: | 6+6mm | Mesh Hight: | ≤1600mm |
Mesh Hole Size: | 50*25mm | Welding Speed: | 40-60 Times/min |
Usage: | Display Rack | Welding Method: | Pneumatic |
Producton Capacity: | 50 Sets/Month | Weight: | 13 Tons |
Voltage: | 220V/380V/415V/440V | Control System: | PLC Control |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Highlight: | displaying rack wire mesh welding machine,wire mesh welding machine 415v,displaying rack wire mesh welder |

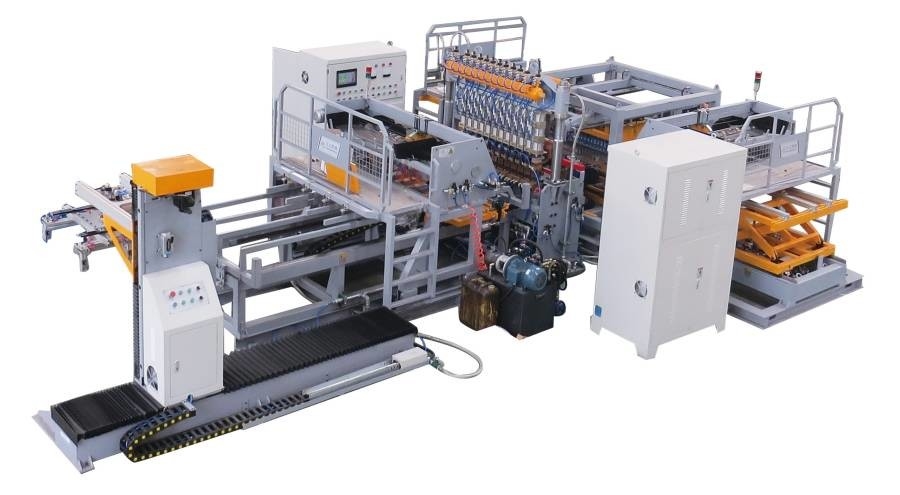

High Precision Displaying Rack Wire Mesh Welding Machine
Do not approach and touch moving components, control components, components for welding while the machine operates, otherwise damage can occur.
Please change the manual in machine operation after checking the safety.
The handle or object shall not be close to the upper or pressurized electrode between the upper and lower electrodes.
Do not close any part of the body to the falling mesh.
Do not live unplug or touch the power adjustment plug on the welding network power transformer, and do not set off the protective plate.
Do not remove or touch the zero connection (grounding) safety protection line on the host machine and the electric control cabinet.Regularly check whether the connecting zero (grounding) safety protection line is good.
In the absence of welded steel, the upper and lower electrodes cannot be empty welded, otherwise a large current will occur in the electrode, which may damage the electrode or circuit equipment.
Item | Name | QTY | Unit |
1 | Welding machine | 1 | SET |
2 | Welding Control System | 1 | SET |
3 | Servo Control System | 1 | SET |
4 | Servo stepping device | 1 | SET |
5 | Cross Wire Auto-Feeding System | 1 | SET |
6 | Long wire loading frame | 1 | SET |
7 | Mesh traction platform | 1 | SET |
8 | Long wire feeding car device | 1 | SET |
9 | Automatically stacking device | 1 | SET |
10 | Mesh transportation car | 1 | SET |
11 | spare part case | 1 | PCS |
12 | Equipment operation and maintenance manual | 1 | COPY |
High Precision Displaying Rack Wire Mesh Welding Machine
If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Gas supply equipment or water pump should also do corresponding maintenance.
Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.
Contact Person: Bella
Tel: +8613283273008
