| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-16Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Wire Pallet Racking Layer Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
|---|---|---|---|
| Wire Diameter Range: | 6+6mm | Mesh Hight: | 500-1600mm |
| Mesh Hole Size: | 50*25mm | Welding Speed: | 40-60 Times/min |
| Usage: | Pallet Racking | Welding Method: | Pneumatic |
| Producton Capacity: | 30 Sets/Month | Weight: | 15 Tons |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC Control |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Highlight: | 1600mm welded wire mesh making machine,50*25mm welded wire mesh making machine,pallet racking layer wire mesh welder |
||

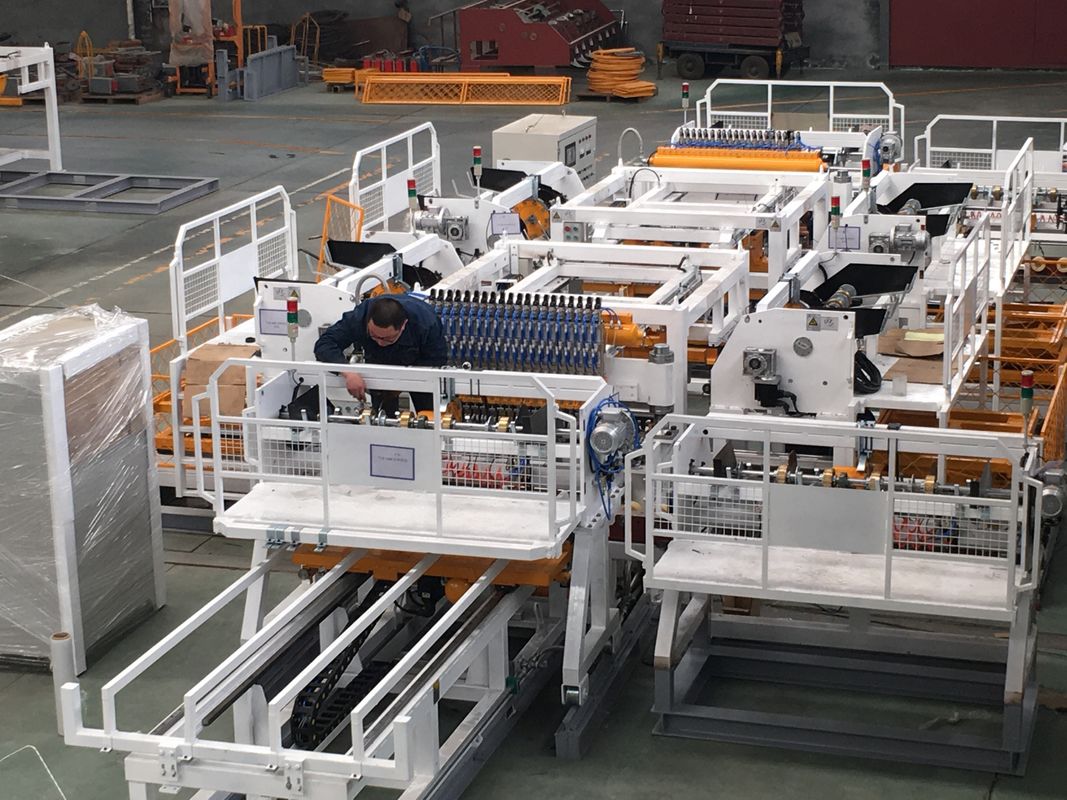

Wire Pallet Racking Layer Wire Mesh Welding Machine
The connecting copper plate and copper wire of the lower electrode seat shall be kept clean so as to avoid a foreign body from short circuit into the electrode and burning the transformer.
When not working below zero degrees Celsius in winter, please put off the cooling water in the water pipe, so as not to freeze and crack the water pipe.
| Item | Name | QTY | Unit |
| 1 | Welding machine | 1 | SET |
| 2 | Welding Control System | 1 | SET |
| 3 | Servo Control System | 1 | SET |
| 4 | Servo stepping device | 1 | SET |
| 5 | Cross Wire Auto-Feeding System | 1 | SET |
| 6 | Long wire loading frame | 1 | SET |
| 7 | Mesh traction platform | 1 | SET |
| 8 | Long wire feeding car device | 1 | SET |
| 9 | Automatically stacking device | 1 | SET |
| 10 | Mesh transportation car | 1 | SET |
| 11 | spare part case | 1 | PCS |
| 12 | Equipment operation and maintenance manual | 1 | COPY |
Wire Pallet Racking Layer Wire Mesh Welding Machine
If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Gas supply equipment or water pump should also do corresponding maintenance.
Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.
