Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-16Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Fully Automatic Goods Pallet Rack Solution Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
---|---|---|---|
Wire Diameter Range: | 6+6mm | Mesh Hight: | 500-1600mm |
Mesh Hole Size: | 50*25mm | Welding Speed: | 40-60 Times/min |
Usage: | Pallet Rack | Welding Method: | Pneumatic |
Producton Capacity: | 25 Sets/Month | Weight: | 18 Tons |
Voltage: | 220V/380V/415V/440V | Control System: | PLC Control |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Highlight: | ce automatic wire mesh welding machine,500mm automatic wire mesh welding machine,goods pallet rack solution mesh welder |

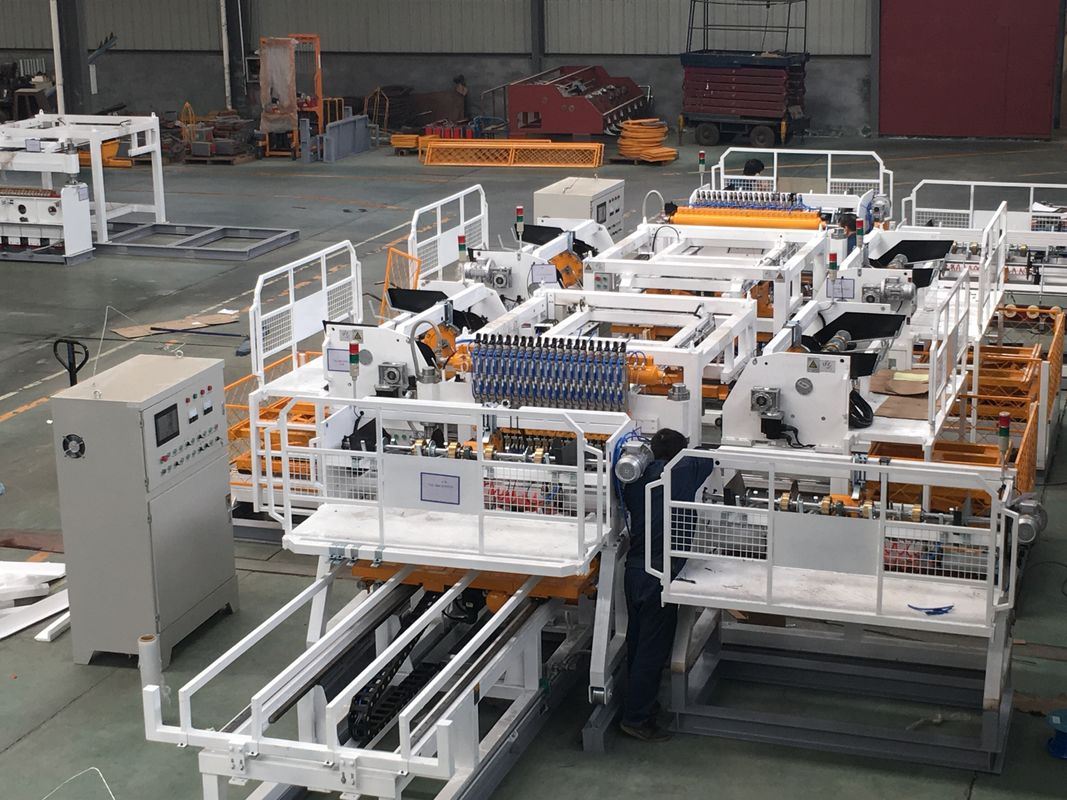

Fully Automatic Goods Pallet Rack Solution Wire Mesh Welding Machine
The main structure of the welding network host is mainly composed of the main frame, pneumatic welding mechanism, bottom beam mechanism, welding transformer, push-up mechanism, etc.All the above institutions are assembled on the frame frame, forming a solid and good human-machine host body.
The main frame is made of iron plate and type steel welding, with stable structure and clean appearance.Other institutions or installed on or somehow connected to it.
The pneumatic welding mechanism is composed of cross beam, insulation plate, welding cylinder, upper electrode, serial circuit, etc.The beam is welded into type steel.Cylinder is installed through insulation plate and crossbeam. Welding cylinder is a strength cylinder to fully improve the welding pressure and ensure the welding quality.The upper electrode is made of cold pull violet copper, and the welding block material is chromium zirconium copper, which is now widely used as the best resistance welding welding material.The welding cylinder and upper electrode can be adjusted to meet the different needs of welding mesh.
Item | Name | QTY | Unit |
1 | Welding machine | 1 | SET |
2 | Welding Control System | 1 | SET |
3 | Servo Control System | 1 | SET |
4 | Servo stepping device | 1 | SET |
5 | Cross Wire Auto-Feeding System | 1 | SET |
6 | Long wire loading frame | 1 | SET |
7 | Mesh traction platform | 1 | SET |
8 | Long wire feeding car device | 1 | SET |
9 | Automatically stacking device | 1 | SET |
10 | Mesh transportation car | 1 | SET |
11 | spare part case | 1 | PCS |
12 | Equipment operation and maintenance manual | 1 | COPY |
Fully Automatic Goods Pallet Rack Solution Wire Mesh Welding Machine
If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Gas supply equipment or water pump should also do corresponding maintenance.
Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.
